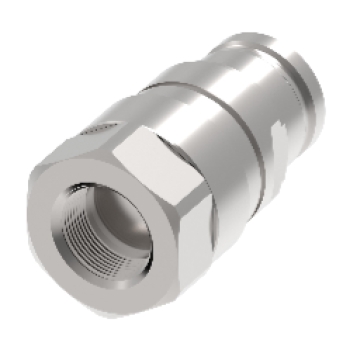

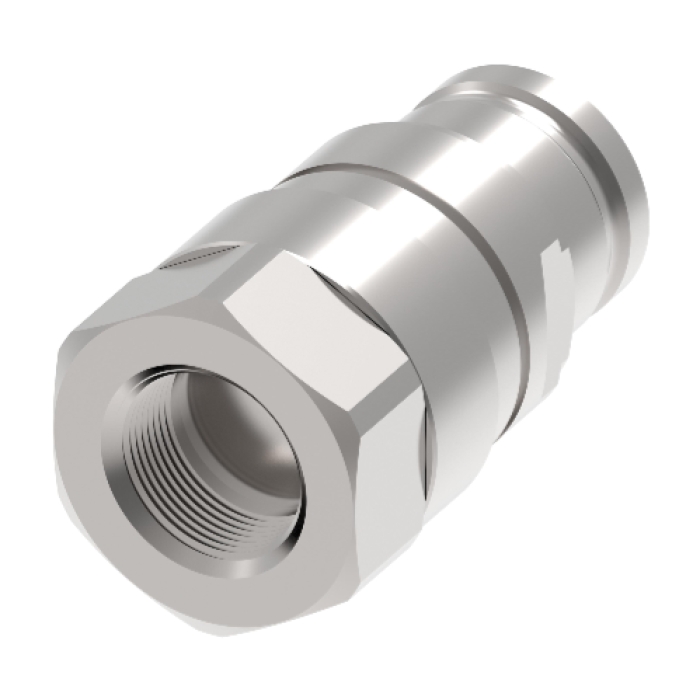

Danfoss Hansen MLDB Series stainless steel coupling is a flat face/dry break coupling used for fluid transfer applications. The MLDB Series offers the ability to connect with less force, higher sealing performance and are available in multiple configurable end connections.
Danfoss Coupling Plug, MLDB Series, 1 x 1 in Connection, Quick Disconnect x FNPT, Material Construction: Stainless Steel, 1.97 in Hex, 2.16 in Dia x 3.4 in L, 360 psi Maximum Operating Pressure, -40 to 302 deg F Operating Temperature, 2-Way Valve, Straight, EPDM Seal
| Fitting Type | : | Plug |
| Material | : | Stainless Steel |
| Connection Size 1 | : | 1 in |
| Connection Size 2 | : | 1 in |
| Dimensions | : | 2.16 in Dia x 3.4 in L |
| Hex Size | : | 1.97 in |
- Designed and manufactured in accordance with Article 4.3 of the European Pressure Equipment Directive PED 2014/68/EU
- Safety sleeve lock prevents accidental disconnections
- Push to connect with double shut-off valving
- Capable of working under high temperature applications
- Shock-resistant color coding ring option available in 1/2" size
- Serviceable design allows for easy cleaning and seal replacement
- Designed with higher flow capacity and resistance to aggressive fluids and corrosion
- Standard body material: 316/316L Stainless steel corrosion resistant
- Standard seal material: FKM, EPDM, Kalrez® and generic FFKM
