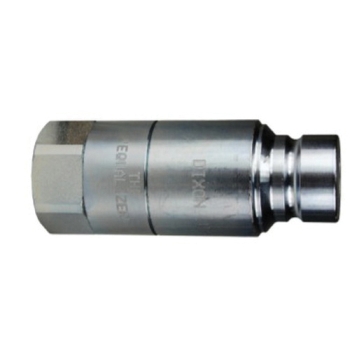

Dixon® Correct Connect™ Connect Under Pressure Flushface Plug, HTE Series, Connection Type 1: Quick Disconnect, Connection Size 1: 3/4 in, Connection Type 2: BSPP, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11, 5000 psi, Steel, Finish: Zinc/Nickel-Plated, Dimension Standards: ISO 16028, 70 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Plug |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1 in |
| Thread Size 2 | : | 1-11 |
| Pressure Rating | : | 5000 psi |
| Material | : | Steel |
| Finish | : | Zinc/Nickel-Plated |
| Dimension Standards | : | ISO 16028 |
| Series | : | HTE |
| Temperature Rating | : | 70 deg F |
| Connection 1 | : | 3/4 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 3/4 in |
| Connection 2 | : | 1 in BSPP |
| Connection Type 2 | : | BSPP |
- Non-linear connection force at all pressures
- No maximum connection pressure restrictions, up to 5000 psi
- Head pressure or valve bleed-by has minimal effect on connection force
- Less susceptible to system contamination
- Design is scalable performing similarly in all sizes
- Smooth connection action
- Connectable with trapped pressure on HTE half only
- Machined components are manufactured using solid steel bar stock
- Steel componentry is plated using RoHS compliant zinc nickel for superior corrosion resistance
- Stainless steel retaining rings and springs maximize corrosion resistance and extend service life
- Nipples are hardened to provide resistance to brinneling during impulse service
- Molded polyurethane valve seals, with a temperature range of -65 to 212 deg F
- Ancillary nipple seals are nitrile (Buna-N), with a temperature range of -40 to 250 deg F
- Parker® FEC Series, Stucchi® APM Series, Faster 3FFH Series
