Dixon® ST3BF4-SS

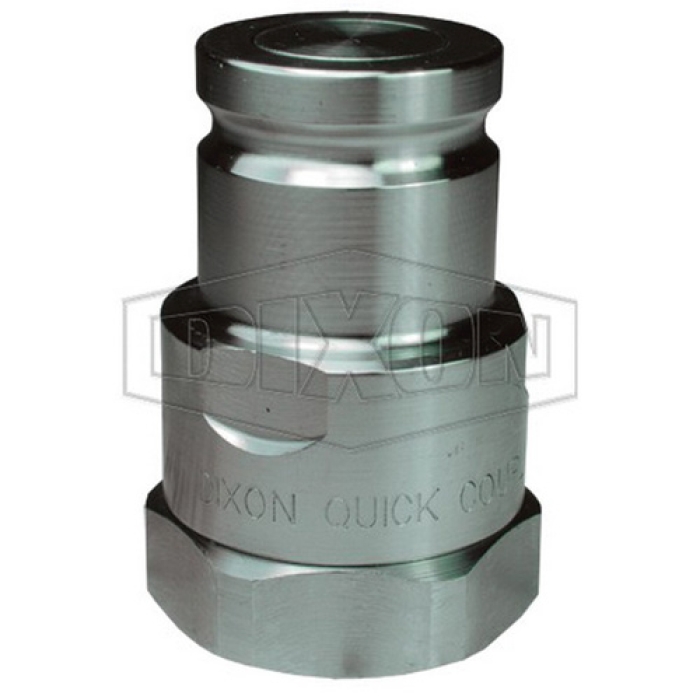

Dixon® ST Series 316 Stainless Steel Snap-Tite 71 Interchange Plug, 3/8 in Quick Disconnect x 1/2 in Female BSPP

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN ST3BF4-SS
  • MPN: ST3BF4-SS
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Snap-Tite 71 Interchange Plug, ST Series, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: BSPP, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1 in, 5000 psi, 316 Stainless Steel, Dimensions: 1.48 in OD x 2.32 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      1/2 in
Thread Size 2      :      1/2-14
Hex Size      :      1 in
Pressure Rating      :      5000 psi
Material      :      316 Stainless Steel
Dimensions      :      1.48 in OD x 2.32 in L
Series      :      ST
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      3/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      3/8 in
Connection 2      :      1/2 in BSPP
Connection Type 2      :      BSPP
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Steel nipples are hardened to provide heavy-duty performance
  • Incorporates PTFE anti-extrusion rings to protect seal components from dynamic impulse damage
  • Interchangeable with Snap-Tite 71 Series
