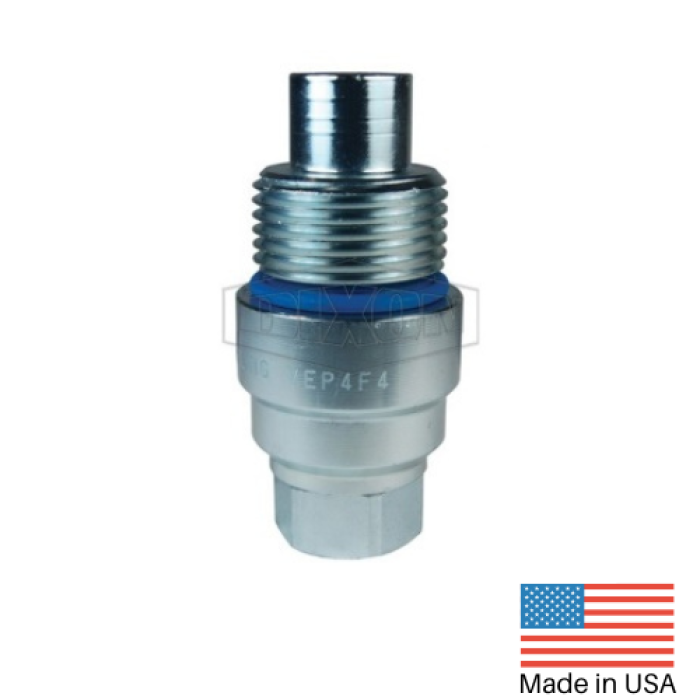

Dixon® Plug, VEP Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1 in, Connection Type 2: BSPP, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11, Hex Size: 44 mm, 5500 psi, Steel, Finish: Zinc/Nickel-Plated, Dimensions: 2.2 in OD x 4.95 in L
California residents see Prop 65 WARNINGS
| Fitting Type | : | Plug |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1 in |
| Thread Size 2 | : | 1-11 |
| Hex Size | : | 44 mm |
| Pressure Rating | : | 5500 psi |
| Material | : | Steel |
| Finish | : | Zinc/Nickel-Plated |
| Dimensions | : | 2.2 in OD x 4.95 in L |
| Series | : | VEP |
| Connection 1 | : | 1 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 1 in |
| Connection 2 | : | 1 in BSPP |
| Connection Type 2 | : | BSPP |
- DORS Retention System optimizes flow and impulse pressure performance
- Thread-to-connect design and dual valve system in the plug allow for connecting under pressure
- Threaded design eliminates premature wear or brinelling commonly found with locking ball designs when subjected to high-impulse pressures
- Machined components are manufactured using solid steel bar stock
- Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
- Steel componentry is plated using RoHS compliant zinc nickel for superior corrosion resistance
- Valve stems have molded polyurethane seals, with a temperature range of -65 to 212 deg F
- Ancillary nipple seals are nitrile (Buna-N), with a temperature range of -40 to 250 deg F
- Interchangeable with Stucchi® VEP-P/VEP-HD Series, DNP PST4/FSI Series, Voswinkel FT Series, Parker® FET Series and Holmbury® HFT Series
