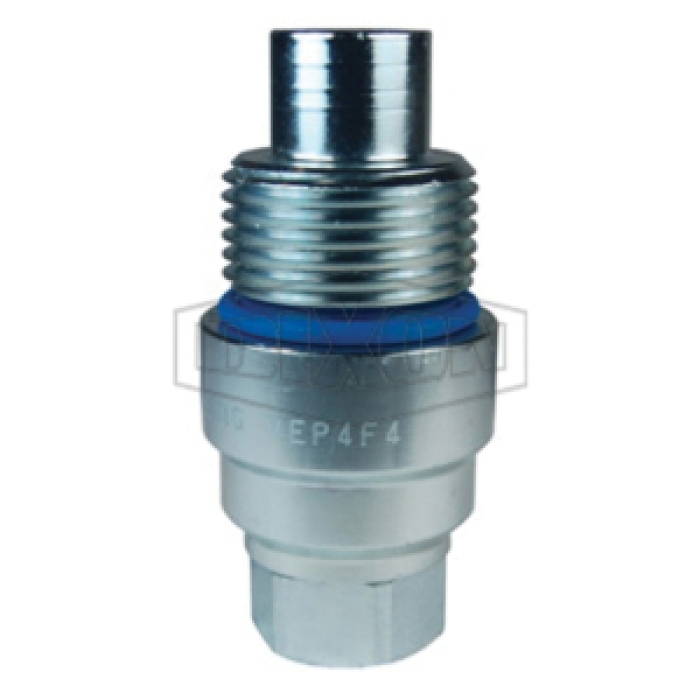

Dixon® VEP4OF4

Dixon® Plug, Series: VEP, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: ORB, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 3/4-16, Hex Size: 30 mm, 5500 psi, Steel, Finish: Zinc/Nickel-Plated, Dimensions: 1.86 in OD x 3.87 in L

California residents see Prop 65 WARNINGS

• DORS Retention System optimizes flow and impulse pressure performance
• Thread-to-connect design and dual valve system in the plug allow for connecting under pressure
• Threaded design eliminates premature wear or brinelling commonly found with locking ball designs when subjected to high-impulse pressures
• Machined components are manufactured using solid steel bar stock
• Stainless steel retaining rings and springs maximize corrosion resistance and extend service life
• Steel componentry is plated using RoHS compliant zinc nickel for superior corrosion resistance
• Valve stems have molded polyurethane seals, with a temperature range of -65 to 212 deg F
• Ancillary nipple seals are nitrile (Buna-N), with a temperature range of -40 to 250 deg F
• TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
• Interchangeable with Stucchi VEP-P/VEP-HD Series, DNP PST4/FSI Series, Voswinkel FT Series, Parker FET Series and Holmbury HFT Series

Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

• Product Cross Ref https://dixonvalve.com/en/knowledge-center/product-cross-reference
• Catalog/Catalog Cut Sheet https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4540_CAT.pdf
• Specification Sheet https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_VEP4OF4_SS.pdf

• https://www.youtube.com/watch?v=LtVEkkJFmbI&ab_channel=DixonValve
