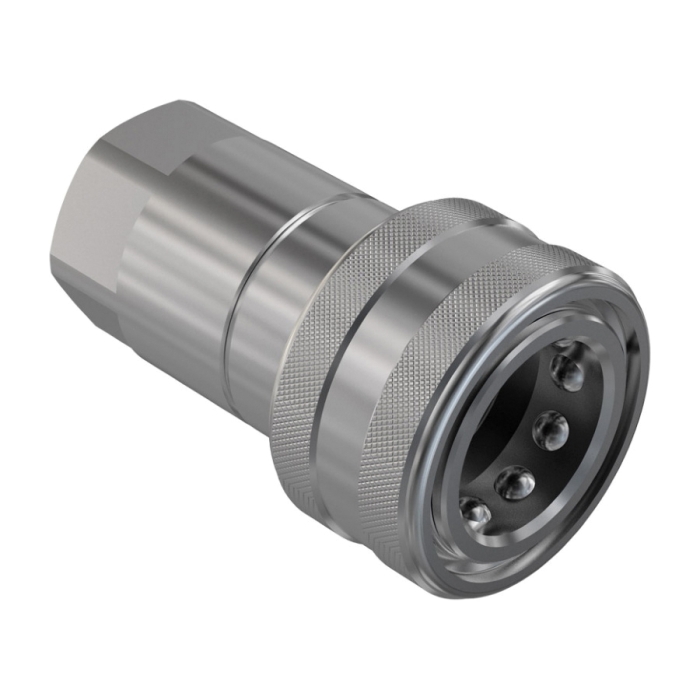

Faster Standard Coupling, Series: HNV, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 3/4 in, Connection Type 2: BSPP, Gender 2: Female, Connection Size 2: 3/4 in, Hex Size: 1.42 in, 3625.943 psi, Stainless Steel, Dimensions: 2.05 in Dia x 3.5 in L, Dimension Standards: ISO 1179-1, -4 to 392 deg F
| Fitting Type | : | Coupling |
| Gender 2 | : | Female |
| Connection Size 2 | : | 3/4 in |
| Hex Size | : | 1.42 in |
| Pressure Rating | : | 3625.943 psi |
| Material | : | Stainless Steel |
| Dimensions | : | 2.05 in Dia x 3.5 in L |
| Dimension Standards | : | ISO 1179-1 |
| Series | : | HNV |
| Temperature Rating | : | -4 to 392 deg F |
| Connection 1 | : | 3/4 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Gender 1 | : | Female |
| Connection Size 1 | : | 3/4 in |
| Connection 2 | : | 3/4 in BSPP |
| Connection Type 2 | : | BSPP |
Standard couplings for industrial applications with stainless steel components (AISI 316) and FKM seals. ISO 7241 part B interchange.
