Stucchi® 801301030
Send Print
  1. pin-int

Stucchi® 801301030

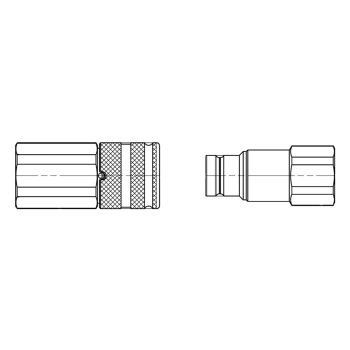

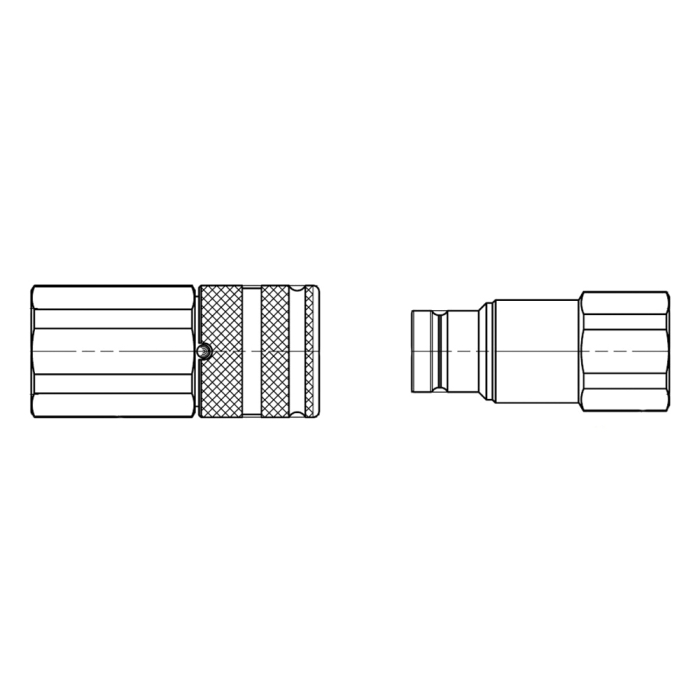

Stucchi® A Premier Carbon Steel Flat Face Interchange Coupling, 3/4 in Quick Connect x 3/4 in FNPT

  • Manufacturers: Stucchi USA
  • Brand Name: Stucchi®
  • Tipco Part No: STU 801301030
  • MPN: 801301030
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Stucchi® Flat Face Interchange Coupling, Series: A Premier, Connection Type 1: Quick Connect, Connection Size 1: 3/4 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 3/4 in, Hex Size: 1.81 in, 14500 psi Burst, Carbon Steel, Dimensions: 3.77 in L x 1.96 in W, Dimension Standards: ISO 16028, -20 to 100 deg C

Fitting Type      :      Coupling
Gender 2      :      Female
Connection Size 2      :      3/4 in
Hex Size      :      1.81 in
Pressure Rating      :      14500 psi Burst
Material      :      Carbon Steel
Dimensions      :      3.77 in L x 1.96 in W
Dimension Standards      :      ISO 16028
Series      :      A Premier
Temperature Rating      :      -20 to 100 deg C
Connection 1      :      3/4 in Quick Connect
Connection Type 1      :      Quick Connect
Connection Size 1      :      3/4 in
Connection 2      :      3/4 in NPT
Connection Type 2      :      NPT

The A Premier Series flat face ISO 16028 interchange couplings offer higher pressure ratings, superior flow characteristics and lower pressure drops compared to FIRG Series or competitors products. Specifically designed for applications needing no-leak performance and the ideal solution for limiting contamination in hydraulic circuits, the non-spill design avoids fluid loss during connection and disconnection.

  • Lock system stops unwanted disconnect
  • Modular structure for multiple port option
  • Hardened steel, 12 - 20 balls reduce brinelling
  • Specifically designed for applications needing no-leak performance
  • Ideal for limiting contamination in hydraulic circuit
  • NBR seal
  • Flat face is easy to clean, reducing the inclusion of contamination inside the hydraulic circuit
  • Minimal fluid loss during disconnection, reducing fluid loss to the environment
  • Minimal air inclusion during connection/disconnection
  • Patented internal valve design creates minimal pressure drop, maintaining circuit efficiency in the system
  • The modular design allows flexibility with a wide range of configurations
  • Good resistance at impulse pressures
  • Compact slim design
  • Safe and simple to use

Applications: For applications involving high-pressure impulses in agriculture equipment, mobile construction equipment, oil, gas exploration and general industrial plants
