Stucchi® 809609001
Send Print
  1. pin-int

Stucchi® 809609001

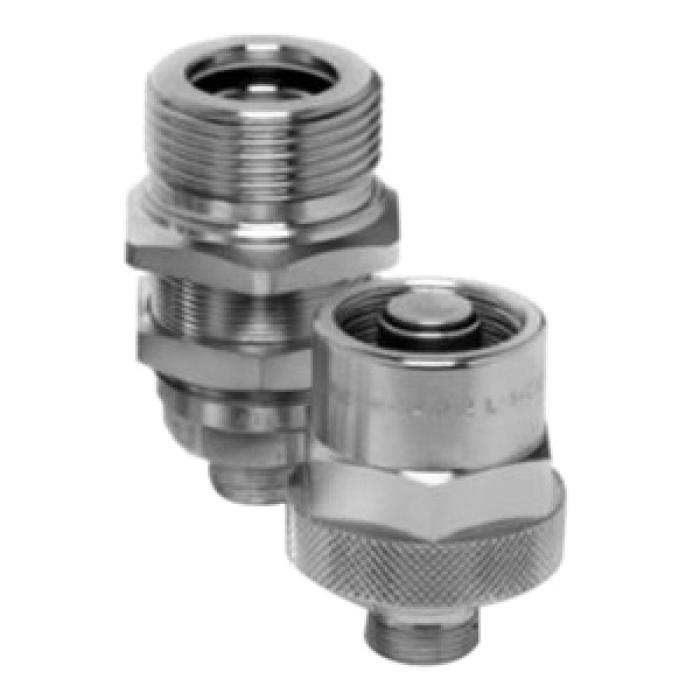

Stucchi® VR Series Carbon Steel Nipple, 1/2 in Quick Disconnect x 24 mm Male Metric DIN

  • Manufacturers: Stucchi USA
  • Brand Name: Stucchi®
  • Tipco Part No: STU 809609001
  • MPN: 809609001
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Stucchi® Nipple, Series: VR, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: Metric DIN, Gender 2: Male, Connection Size 2: 24 mm, Thread Size 2: M24 x 1.5, Hex Size: 0.94 in, 2900 psi, Carbon Steel, Dimensions: 2.9 in L, -20 to 100 deg C

Fitting Type      :      Nipple
Gender 2      :      Male
Connection Size 2      :      24 mm
Thread Size 2      :      M24 x 1.5
Hex Size      :      0.94 in
Pressure Rating      :      2900 psi
Material      :      Carbon Steel
Dimensions      :      2.9 in L
Series      :      VR
Temperature Rating      :      -20 to 100 deg C
Connection 1      :      1/2 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/2 in
Connection 2      :      24 mm Metric
Connection Type 2      :      Metric DIN

The VR Series German screw coupler uses a low leakage style valve for the sealing mechanism and threads as the mechanical connection, to ensure connection with some residual pressure. The rugged design makes the VR particularly well suited for heavy-duty service conditions and a variety of hydraulic applications, including the mobile construction and industrial fields.

  • Interchangeable with German market couplings
  • Internal components purposely designed to reduce turbulence
  • Friction ring prevents accidental disconnection
  • Particularly well-suited for heavy-duty service conditions
  • Cover various fields of hydraulic applications

Applications: Used in mobile cranes, trucks and industrial plant applications
