Danfoss RA0422000

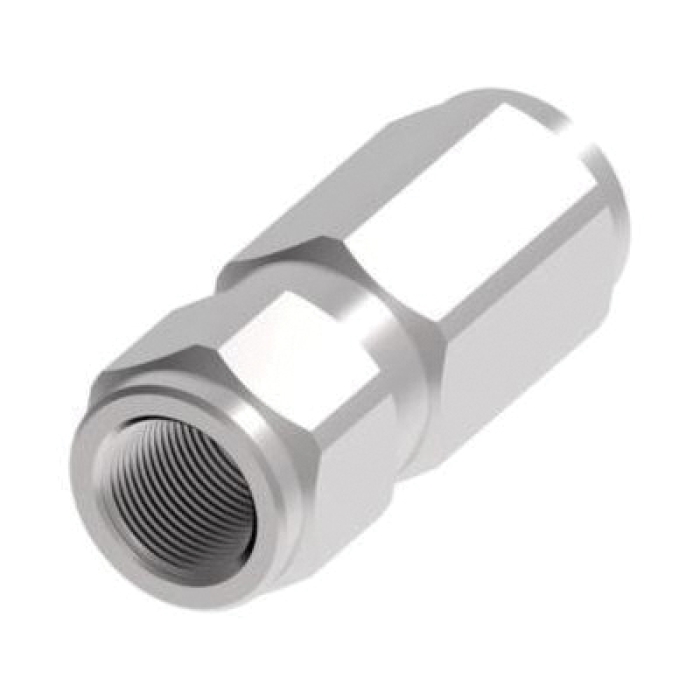

Danfoss Gromelle R4000 Series RA0422000 Check Valve, 3/8 in x 3/8 in, NPTF x NPTF, 5.81 gpm, Carbon Steel, Zinc-Plated

  • Manufacturers: Danfoss
  • Brand Name: Danfoss
  • Tipco Part No: ALT C375S
  • MPN: RA0422000
  • UPC: 678146210005
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

The Danfoss Gromelle R4000 Series steel check valves are designed for multipurpose hydraulic applications to either allow flow of fluid in one direction only or limit the line’s internal pressure to the cracking pressure. Standard cracking pressures are 0.5 and 1 bar (7.25 and 14.5 psi)

Danfoss Gromelle Check Valve, Check Valve, R4000 Series, 3/8 in NPTF Connection 1, Connection Type 1: NPTF, Connection Size 1: 3/8, 3/8 in NPTF Connection 2, Connection Type 2: NPTF, Connection Size 2: 3/8, 5.81 Flow Rate, Carbon Steel, Zinc-Plated, -40 to 250 Temperature Rating, 10150

Fitting Type      :      Check Valve
Series      :      R4000 Series
Connection 1      :      3/8 in NPTF
Connection Type 1      :      NPTF
Connection Size 1      :      3/8 in
Connection 2      :      3/8 in NPTF
Connection Type 2      :      NPTF
Connection Size 2      :      3/8 in
Flow Rate      :      5.81 gpm
Material      :      Carbon Steel
Finish      :      Zinc-Plated
Temperature Rating      :      -40 to 250 deg F
Pressure Rating      :      10150 psi
  • Standard body material - Zinc-plated steel
  • Standard seal material: NBR, FKM, EPDM
  • pdfCatalog https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Danfoss_22238E_Catalog.pdf
  • pdfWarranty Information https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Danfoss_RA0422000_Warranty.pdf
