Aeroquip® 5100-15-16B
Send Print
  1. pin-int

Aeroquip® 5100-15-16B

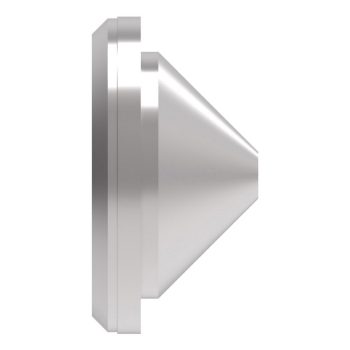

Aeroquip® 5100 Zinc Trivalent-Plated Brass Poppet Valve, 1 in Threaded

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 5100-15-16B
  • MPN: 5100-15-16B
  • UPC: 678146035592
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Poppet Valve, 5100 Series, Connection Type 1: Threaded, Connection Size 1: 1 in, Up to 500 psi, Brass, Finish: Zinc Trivalent-Plated, Dimensions: 0.671 in L x 1.11 in W x 1.11 in H, -40 to 250 deg F

Fitting Type      :      Valve
Pressure Rating      :      Up to 500 psi
Material      :      Brass
Finish      :      Zinc Trivalent-Plated
Dimensions      :      0.671 in L x 1.11 in W x 1.11 in H
Series      :      5100
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1 in Threaded
Connection Type 1      :      Threaded
Connection Size 1      :      1 in

Danfoss's 5100 Series brass coupling with steel tubular valve offers minimum air inclusion and fluid loss. Thread together latch provides connect under pressure capability and vibration-resistance. The 5100 series is not rated for continuous hydraulic impulse applications.

  • No fluid loss during connection/disconnection
  • Low air inclusion
  • Wing or hex configuration

Applications: Hydraulics and fluid transfer, on-highway hydraulic wet lines, dump and refuse vehicles and bulk liquid transfer
