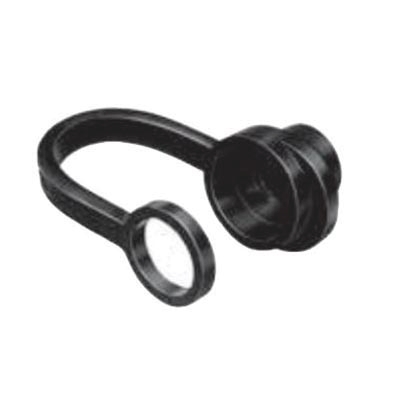

Aeroquip® Standard Coupling Dust Cap/Plug, FD49 Series, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, 3000 psi, Carbon Steel, Finish: Zinc Trivalent-Plated, -40 to 250 deg F
| Fitting Type | : | Dust Cap/Plug |
| Pressure Rating | : | 3000 psi |
| Material | : | Carbon Steel |
| Finish | : | Zinc Trivalent-Plated |
| Series | : | FD49 |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 3/8 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 3/8 in |
Danfoss FD49 Series meets NFPA standard T3.20.15 and was developed in conjunction with HTMA (hydraulic tool manufacturer's association). Danfoss Twin-Guard™ sealing system prevents weepage at low pressures and allows connection and disconnection against pressure up to 500 psi.
- Dual flush face valving for minimal fluid loss and air inclusion
- Tubular valve and sleeve construction for high-fluid flow with low pressure drop
- Push-to-connect latching for one hand operation
- Standard seal material PTFE channel seal and Buna-N O-ring backup
Applications: Hydraulic tool (HTMA interchange), hydraulic and fluid transfer
Catalog/Catalog Cut Sheet
