Aeroquip® FD86-1016-20 AER FD86-1016-20 | Tipco Technologies
Aeroquip® FD86-1016-20
Send Print
  1. pin-int

Aeroquip® FD86-1016-20

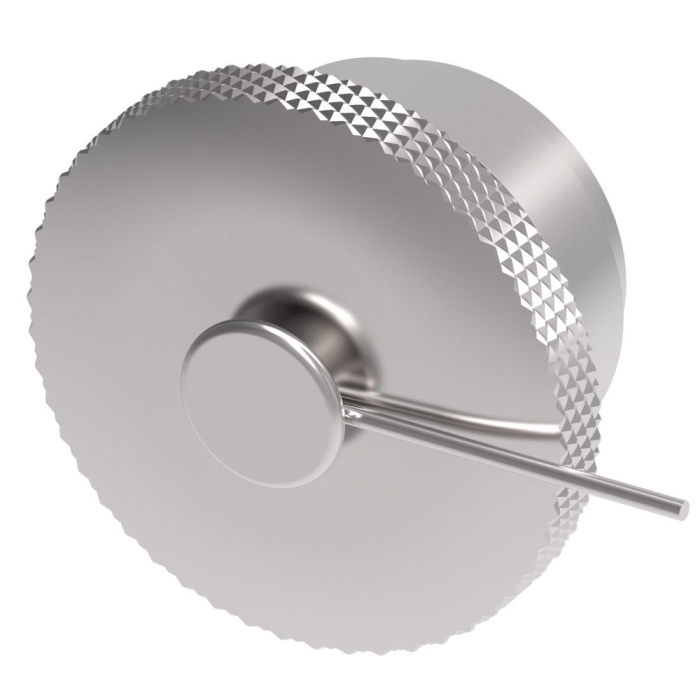

Aeroquip® FD86 Zinc Trivalent-Plated Carbon Steel Dust Plug with Chain, 1-1/4 in Male Quick Disconnect

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FD86-1016-20
  • MPN: FD86-1016-20
  • UPC: 678146038289
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Dust Plug with Chain, FD86 Series, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1-1/4 in, 5000 psi, Carbon Steel, Finish: Zinc Trivalent-Plated, Dimensions: 12.1 in L x 3 in W x 1.91 in H, -40 to 250 deg F

Fitting Type      :      Dust Plug
Pressure Rating      :      5000 psi
Material      :      Carbon Steel
Finish      :      Zinc Trivalent-Plated
Dimensions      :      12.1 in L x 3 in W x 1.91 in H
Series      :      FD86
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1-1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Male
Connection Size 1      :      1-1/4 in

Applications: Hydraulic and fluid transfer, mining equipment
