Danfoss 5110-S5-20B

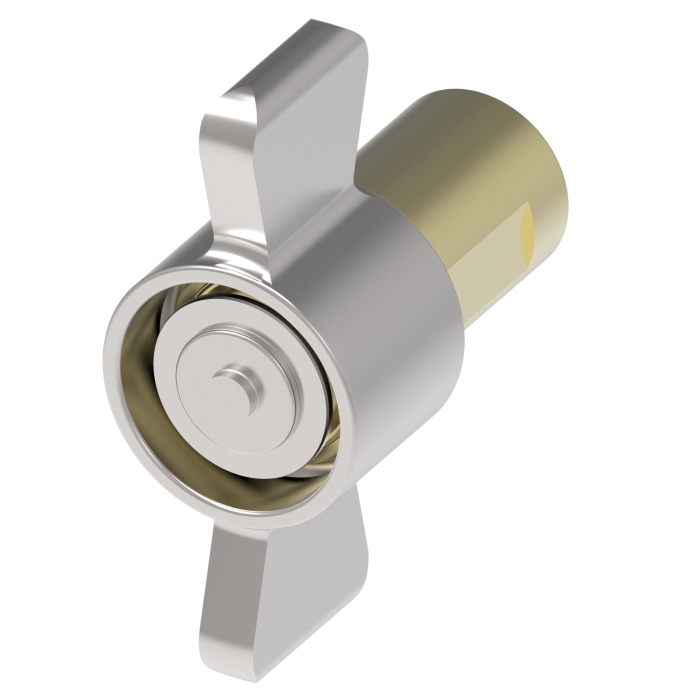

Danfoss Hansen 5100 Series 5110-S5-20B Coupling, 1-1/4 in x 1-1/4 in, NPT x NPT, Brass, Zinc Trivalent-Plated, 2500 psi

  • Manufacturers: Danfoss
  • Brand Name: Danfoss
  • Tipco Part No: AER 5110-S5-20B
  • MPN: 5110-S5-20B
  • UPC: 678146036148
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Danfoss Hansen 5100 Series brass coupling with steel tubular valve offers minimum air inclusion and fluid loss. Thread together latch provides connect under pressure capability and vibration resistance. The 5100 Series is not rated for continuous hydraulic impulse applications. For hydraulic impulse applications, refer to the FD86 and FD96 Series thread to connect product lines.

Danfoss Hansen Coupling, Female Gender 2, Connection Size 2: 1-1/4, 3/4-14 Thread Size 2, 2-1/2 Hex, 2500, Brass, Zinc Trivalent-Plated, Dimensions: 4 in L x 2.31 in W x 2.5 in H, 5100 Series, -40 to 250 Temperature Rating, 1-1/4 in Female NPT Connection 1, Connection Type 1: NPT, Female Gender 1, Connection Size 1: 1-1/4, 3/4-14 Thread Size 1, 1-1/4 in Female NPT Connection 2, Connection Type 2: NPT

Fitting Type      :      Coupling
Gender 2      :      Female
Connection Size 2      :      1-1/4 in
Thread Size 2      :      3/4-14
Hex Size      :      2-1/2 in
Pressure Rating      :      2500 psi
Material      :      Brass
Finish      :      Zinc Trivalent-Plated
Dimensions      :      4 in L x 2.31 in W x 2.5 in H
Series      :      5100 Series
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1-1/4 in Female NPT
Connection Type 1      :      NPT
Gender 1      :      Female
Connection Size 1      :      1-1/4 in
Thread Size 1      :      3/4-14
Connection 2      :      1-1/4 in Female NPT
Connection Type 2      :      NPT
  • Quick connect and disconnect
  • No need for special tools
  • Exceeds ISO 16028 operating pressures
  • Tubular valve construction for virtually no fluid loss during disconnection, reduces environmental and worker safety hazards
  • Low air inclusion during connection maintains system performance
  • Connect against pressure capability allows connecting of halves even when pressurized up to 500 psi
