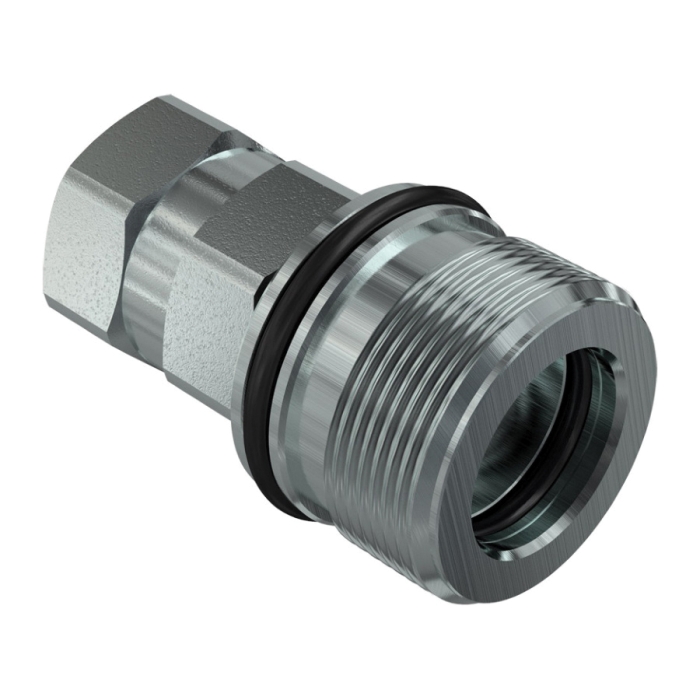

Faster Screw-To-Connect Coupling, Series: CVV, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 3/4 in, Connection Type 2: ORB, Gender 2: Female, Connection Size 2: 1-1/16 in, Thread Size 2: 1-1/16-12, Hex Size: 1.61 in, 3916.019 psi, Steel, Dimensions: 1.89 in Dia x 3.39 in L, Dimension Standards: ISO 11926-1, -4 to 392 deg F
| Fitting Type | : | Coupling |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1-1/16 in |
| Thread Size 2 | : | 1-1/16-12 |
| Hex Size | : | 1.61 in |
| Pressure Rating | : | 3916.019 psi |
| Material | : | Steel |
| Dimensions | : | 1.89 in Dia x 3.39 in L |
| Dimension Standards | : | ISO 11926-1 |
| Series | : | CVV |
| Temperature Rating | : | -4 to 392 deg F |
| Connection 1 | : | 3/4 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Gender 1 | : | Male |
| Connection Size 1 | : | 3/4 in |
| Connection 2 | : | 1-1/16 in ORB |
| Connection Type 2 | : | ORB |
Screw-on couplings suitable for general-purpose applications. Connectable under residual pressure. High-resistance to pressure and flow impulses. Interchangeable according to ISO 14541 standard for 1/4, 3/8, 1/2, 3/4 in sizes. Working pressure according to ISO 14541, that requires a safety factor 4:1 on minimum burst pressure. The couplings can perfectly work with a safety factor 3:1 and consequently with higher working pressure.
Applications: For crawler cranes, test benches and slipform pavers
Specification Sheet
