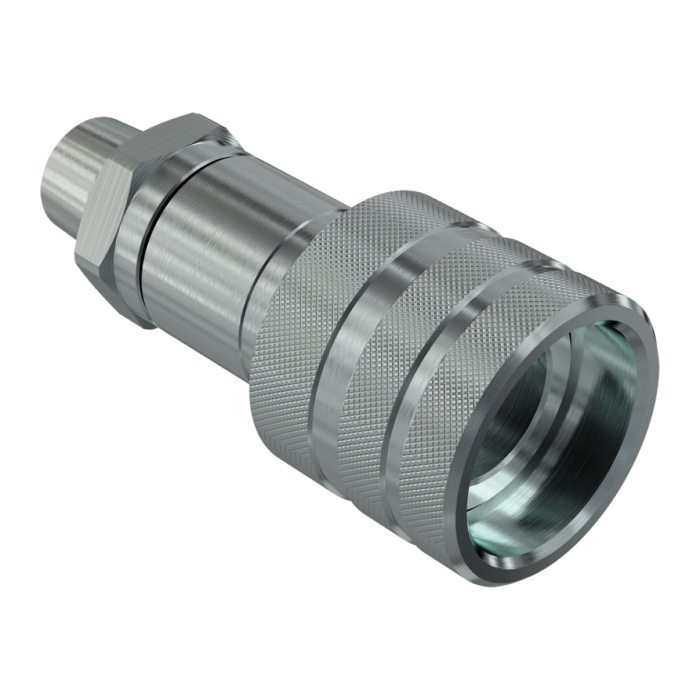

Faster Screw-To-Connect Coupling, Series: PVVM, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/4 in, Hex Size: 1.18 in, 14938.887 psi, Steel, Dimensions: 1.3 in Dia x 2.48 in L, Dimension Standards: ANSI B1.20.3, -13 to 257 deg F
| Fitting Type | : | Coupling |
| Gender 2 | : | Male |
| Connection Size 2 | : | 1/4 in |
| Hex Size | : | 1.18 in |
| Pressure Rating | : | 14938.887 psi |
| Material | : | Steel |
| Dimensions | : | 1.3 in Dia x 2.48 in L |
| Dimension Standards | : | ANSI B1.20.3 |
| Series | : | PVVM |
| Temperature Rating | : | -13 to 257 deg F |
| Connection 1 | : | 1/4 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Gender 1 | : | Female |
| Connection Size 1 | : | 1/4 in |
| Connection 2 | : | 1/4 in NPT |
| Connection Type 2 | : | NPTF |
Screw-on couplings purposely designed for the heaviest applications (example hydraulic jacks for bridge maintenance). Equipped with a robust metal-to-metal sealing poppet valve, this series guarantees the best performance on the market in terms of maximum working pressure. ISO 14540 interchange.
Applications: For hydraulic lift systems, bridges and infrastructures, hydraulic torque wrenches
