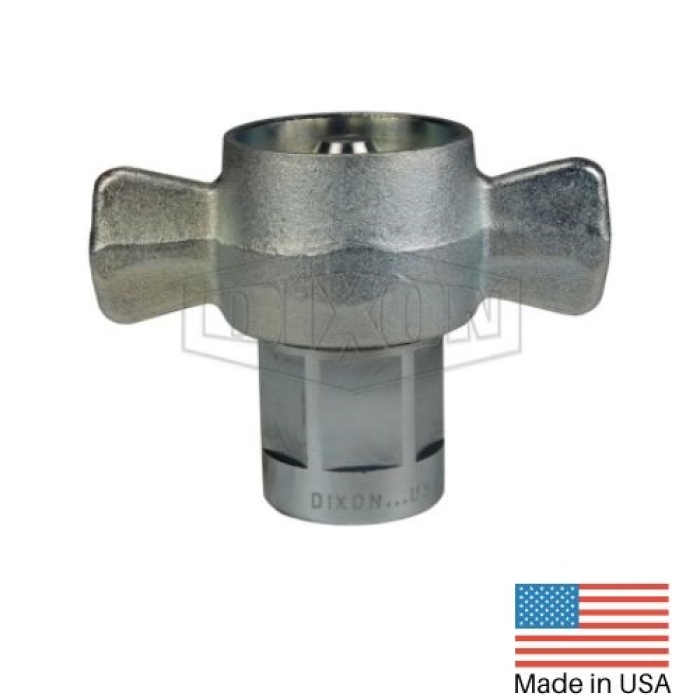

Dixon® Wingstyle Interchange Coupler, W Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, Hex Size: 1-15/32 in, 4000 psi, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 4.49 in OD x 3.33 in L, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Coupler |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1 in |
| Thread Size 2 | : | 1-11-1/2 |
| Hex Size | : | 1-15/32 in |
| Pressure Rating | : | 4000 psi |
| Material | : | Steel |
| Finish | : | Trivalent Chrome-Plated |
| Dimensions | : | 4.49 in OD x 3.33 in L |
| Series | : | W |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 1 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 1 in |
| Connection 2 | : | 1 in NPT |
| Connection Type 2 | : | NPTF |
- Full hex, ease-of-installation
- Compact body profile reduction of side-load stress
- Hybrid valve guide for improved flow and pressure performance
- Anti-extrusion seal-pack, superior longevity
- Bonded flange valve for improved pressurized connection service
- Machined components are manufactured using solid bar stock
- Stainless steel retaining rings and springs maximize corrosion resistance and extend service life
- Steel componentry is plated using RoHS compliant trivalent chrome
- Rugged steel wing nut for threaded connect and disconnect operation
- Nitrile (Buna-N) seals are standard
- Main coupler valve has a bonded face-seal to improve seal integrity during pressurized connection/disconnection
- Redundant O-ring on the coupler body will engage nipple for secondary sealing support
- Couplings have a TPC-EPT back-up ring on the valve sleeve to extend service life
- Coupling has a PTFE back-up ring on the valve sleeve to extend service life
- Aeroquip®5100-Series, Parker® 6100-Series, Snap-Tite 78-Series, Faster Series-FB, Safeway S51-Series
Applications: For dump trailer wet-line hydraulic systems and oil field equipment
Safety Notes:
- Although wing style couplings are able to connect and disconnect while under pressure, it is recommended that hydraulic power supply be de-energized during connection to ensure operator safety.
- If it is not possible to de-energize the circuit, operators must be aware of their surroundings to ensure that an attachment or tool does not put them at risk, once hydraulic power is applied during the connection process.
- W-series couplings are not recommended for continuous hydraulic impulse applications at rated pressures.
