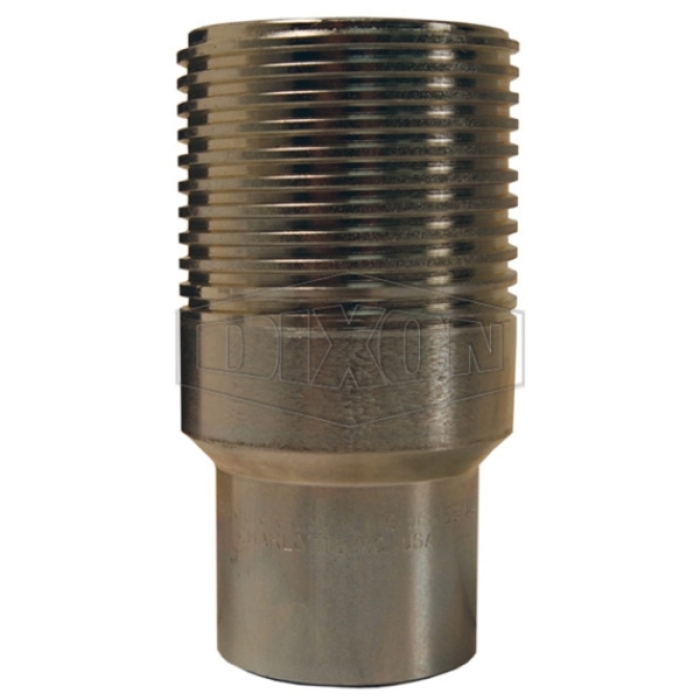

Dixon® High-Pressure Wingstyle Plug, Series: WS, Connection Type 1: Quick Disconnect, Connection Size 1: 2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 2 in, Thread Size 2: 2-11-1/2, 5000 psi, Steel, Finish: Zinc/Nickel-Plated, Dimensions: 4 in OD x 7.05 in L, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Plug |
| Gender 2 | : | Female |
| Connection Size 2 | : | 2 in |
| Thread Size 2 | : | 2-11-1/2 |
| Pressure Rating | : | 5000 psi |
| Material | : | Steel |
| Finish | : | Zinc/Nickel-Plated |
| Dimensions | : | 4 in OD x 7.05 in L |
| Series | : | WS |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 2 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 2 in |
| Connection 2 | : | 2 in NPT |
| Connection Type 2 | : | NPTF |
- Machined components are manufactured using solid steel bar stock
- Stainless steel retaining rings and springs maximize corrosion resistance and extend service life
- Steel componentry is plated using RoHS compliant zinc nickel for superior corrosion resistance
- Nitrile (Buna-N) seals are standard, providing a temperature range of -40 to 250 deg F
- PTFE anti-extrusion ring protects main coupling O-ring from dynamic impulse pressure damage
- Main valve seal is 'housed' to improve seal integrity during pressurized connection/disconnection
- Snap-Tite 75-Series, Hydraulics Inc. Series- 5TV, DNP VFF-HD
- Stucchi VOF, Faster OGV, Eaton FD85, Holmbury LC
Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
Applications: For oil field and offshore oil rig applications
