Dixon® 100-B-SS
Send Print
  1. pin-int

Dixon® 100-B-SS

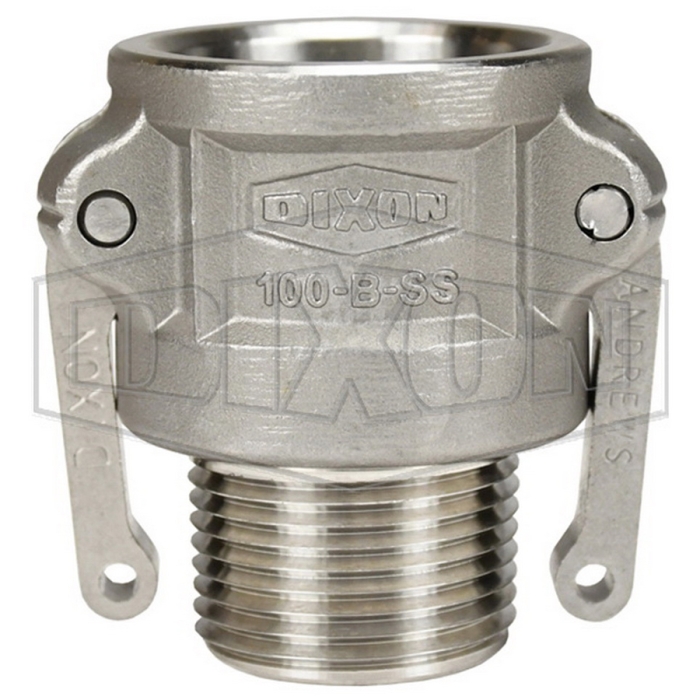

Dixon® 100-B-SS 316 Stainless Steel Cam and Groove Type B Coupler, 1 in Female Coupler x 1 in MNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 100-B-SS
  • MPN: 100-B-SS
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Cam and Groove Type B Coupler, Connection Type 1: Fitting, Gender 1: Female, Connection Size 1: 1 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, 250 psi, 316 Stainless Steel, Dimensions: 1-7/8 in Dia x 2-9/16 in L

California residents see Prop 65 WARNINGS

Fitting Shape      :      Type B
Connection Size 1      :      1 in
Connection Size 2      :      1 in
Thread Size 2      :      1-11-1/2
Pressure Rating      :      250 psi
Material      :      316 Stainless Steel
Dimensions      :      1-7/8 in Dia x 2-9/16 in L
Fitting Type      :      Coupler
Connection 1      :      1 in Fitting
Connection 2      :      1 in NPT
Connection Type 1      :      Fitting
Connection Type 2      :      NPT
Gender 1      :      Female
Gender 2      :      Male
  • Precision machined to rigid tolerances
  • Stainless pins will not rust or bind, providing great strength and safety
  • Recess holds gasket firmly in place ensures proper placement
  • Buna-N gasket
  • Durable stainless steel cam arm pins
  • Produced to interchange with all product produced to commercial item description A-A-59326D

Applications: For use with liquids

Safety Notes:

  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
  • For use at elevated temperature or other unusual operating conditions, consult Dixon®.
