Dixon® 150-B-AL
Send Print
  1. pin-int

Dixon® 150-B-AL

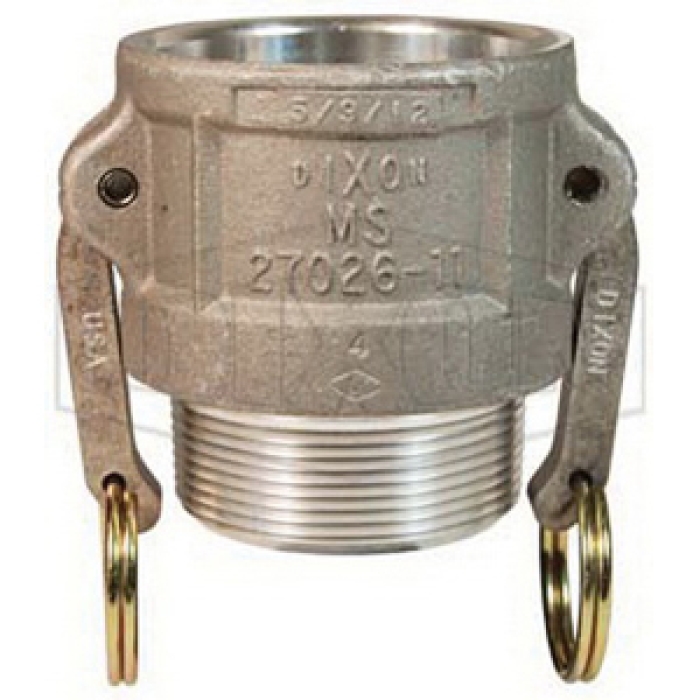

Dixon® 150-B-AL Aluminum Cam and Groove Type B Coupler, 1-1/2 in Female Coupler x 1-1/2 in MNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 150-B-AL
  • MPN: 150-B-AL
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Cam and Groove Type B Coupler, Connection Type 1: Fitting, Gender 1: Female, Connection Size 1: 1-1/2 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1-1/2 in, 250 psi, Aluminum

California residents see Prop 65 WARNINGS

Fitting Shape      :      Type B
Connection Size 1      :      1-1/2 in
Connection Size 2      :      1-1/2 in
Pressure Rating      :      250 psi
Material      :      Aluminum
Fitting Type      :      Coupler
Connection 1      :      1-1/2 in Fitting
Connection 2      :      1-1/2 in NPT
Connection Type 1      :      Fitting
Connection Type 2      :      NPT
Gender 1      :      Female
Gender 2      :      Male
  • Precision machined to rigid tolerances
  • Stainless pins will not rust or bind, providing great strength and safety
  • Recess holds gasket firmly in place ensures proper placement
  • Buna-N gasket
  • Durable stainless steel cam arm pins
  • Produced to interchange with all product produced to commercial item description A-A-59326D
  • 356T6 aluminum construction

Applications: For use with liquids

Safety Notes:

  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
  • For use at elevated temperature or other unusual operating conditions, consult Dixon®.
  • video http://youtu.be/Vgth_9M5IRM?list=PL10BD55ADAF82DEDA
