Dixon® 150-E-HA DXN 150-E-HA | Tipco Technologies
Dixon® 150-E-HA
Send Print
  1. pin-int

Dixon® 150-E-HA

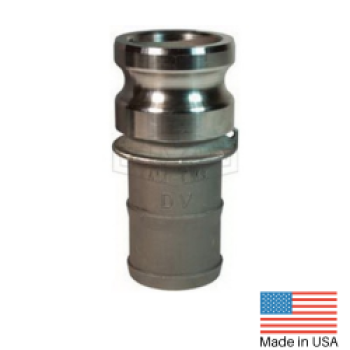

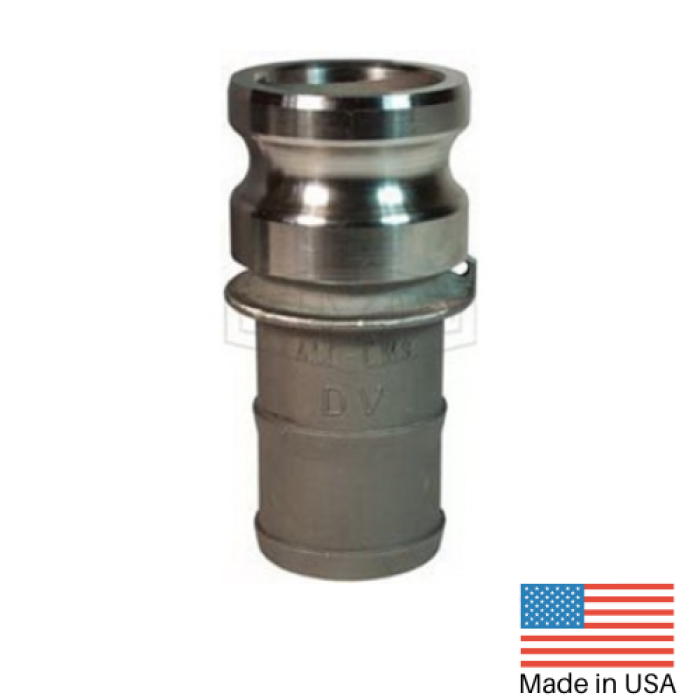

Dixon® 150-E-HA Hastelloy® Cam and Groove Type E Adapter, 1-1/2 in Male Adapter x 1-1/2 in Hose Shank

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 150-E-HA
  • MPN: 150-E-HA
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Cam and Groove Type E Adapter, Connection Type 1: Fitting, Gender 1: Male, Connection Size 1: 1-1/2 in, Connection Type 2: Hose Stem, Connection Size 2: 1-1/2 in, 250 psi, Hastelloy®, Dimensions: 2-3/32 in Dia x 4-31/32 in L

California residents see Prop 65 WARNINGS

Fitting Shape      :      Type E
Connection Size 1      :      1-1/2 in
Connection Size 2      :      1-1/2 in
Pressure Rating      :      250 psi
Material      :      Hastelloy®
Dimensions      :      2-3/32 in Dia x 4-31/32 in L
Fitting Type      :      Adapter
Connection 1      :      1-1/2 in Fitting
Connection 2      :      1-1/2 in Hose Stem
Connection Type 1      :      Fitting
Connection Type 2      :      Hose Stem
Gender 1      :      Male
  • Produced to interchange with all product produced to commercial item description A-A-59326D
  • Hastelloy® CW12MW

Applications: For use with liquids

Safety Notes:

  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
  • For use at elevated temperature or other unusual operating conditions, consult Dixon®.
  • video //www.youtube.com/embed/I4p-j-iVJF0
