Dixon® 150-F-HA

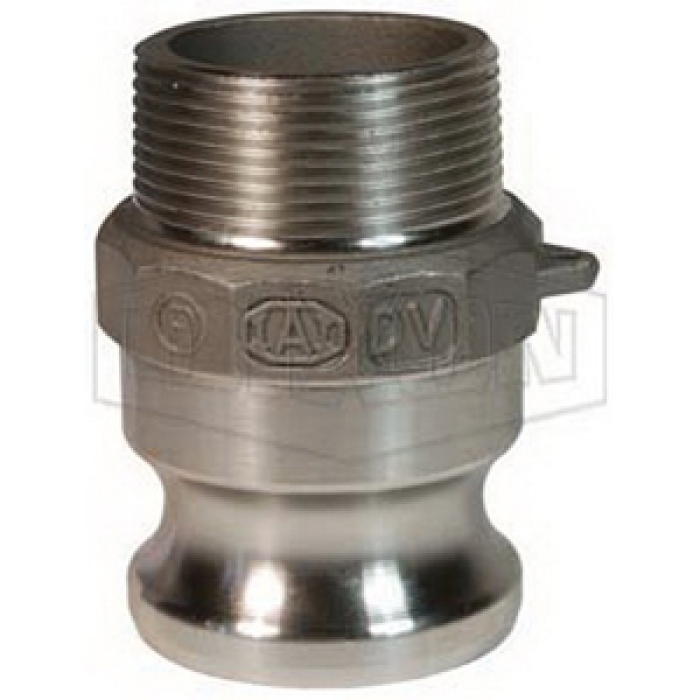

Dixon® 150-F-HA Hastelloy® Cam and Groove Type F Adapter, 1-1/2 in Male Adapter x 1-1/2 in MNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 150-F-HA
  • MPN: 150-F-HA
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Cam and Groove Type F Adapter, Connection Type 1: Fitting, Gender 1: Male, Connection Size 1: 1-1/2 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1-1/2 in, Thread Size 2: 1-1/2-11-1/2, Hex Size: 2-1/4 in, 250 psi, Hastelloy®, Dimensions: 2-7/64 in Dia x 3-1/8 in L

California residents see Prop 65 WARNINGS

Fitting Shape      :      Type F
Connection Size 1      :      1-1/2 in
Connection Size 2      :      1-1/2 in
Thread Size 2      :      1-1/2-11-1/2
Hex Size      :      2-1/4 in
Pressure Rating      :      250 psi
Material      :      Hastelloy®
Dimensions      :      2-7/64 in Dia x 3-1/8 in L
Fitting Type      :      Adapter
Connection 1      :      1-1/2 in Fitting
Connection 2      :      1-1/2 in NPT
Connection Type 1      :      Fitting
Connection Type 2      :      NPT
Gender 1      :      Male
Gender 2      :      Male
  • Produced to interchange with all product produced to commercial item description A-A-59326D
  • Hastelloy® CW12MW

Applications: For use with liquids

Safety Notes:

  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
  • For use at elevated temperature or other unusual operating conditions, consult Dixon®.
