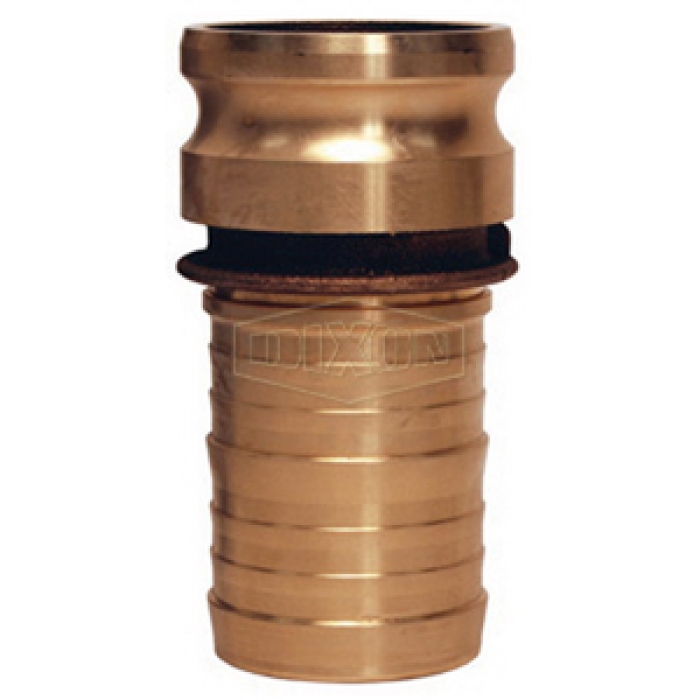

Dixon® Cam and Groove Type E Adapter, Connection Type 1: Fitting, Gender 1: Male, Connection Size 1: 2 in, Connection Type 2: Hose Stem, Connection Size 2: 2 in, 250 psi, Brass, Dimensions: 2-15/32 in Dia x 6-1/32 in L, For Use With: King Crimp™ Sleeves and Ferrules
California residents see Prop 65 WARNINGS
| Fitting Shape | : | Type E |
| Connection Size 1 | : | 2 in |
| Connection Size 2 | : | 2 in |
| Pressure Rating | : | 250 psi |
| Material | : | Brass |
| Dimensions | : | 2-15/32 in Dia x 6-1/32 in L |
| Fitting Type | : | Adapter |
| For Use With | : | King Crimp™ Sleeves and Ferrules |
| Connection 1 | : | 2 in Fitting |
| Connection 2 | : | 2 in Hose Stem |
| Connection Type 1 | : | Fitting |
| Connection Type 2 | : | Hose Stem |
| Gender 1 | : | Male |
- Precision machined to rigid tolerances
- Produced to interchange with all product produced to commercial item description A-A-59326D
Applications: For use with liquids
Safety Notes:
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating is based on the seal of the mating part.
- Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
- For use at elevated temperature or other unusual operating conditions, consult Dixon®.
- Only use the crimp style shanks with the crimp style sleeves and ferrules.
- Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon® products.
Catalog/Catalog Cut Sheet
