Dixon® 200CNOSSS

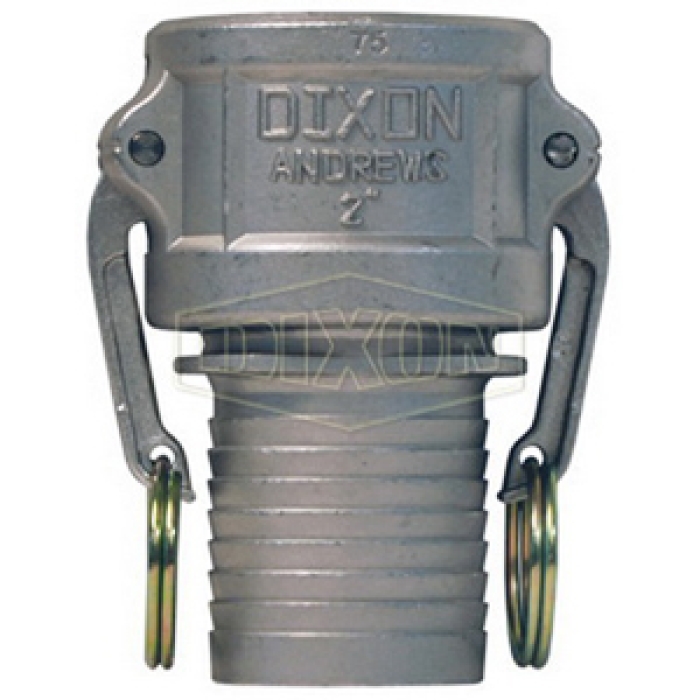

Dixon® 200CNOSSS 316 Stainless Steel Cam and Groove Notched NOS Type C Coupler, 2 in Female Coupler x 2 in Hose Shank

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 200CNOSSS
  • MPN: 200CNOSSS
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Cam and Groove Notched NOS Type C Coupler, Connection Type 1: Fitting, Gender 1: Female, Connection Size 1: 2 in, Connection Type 2: Hose Stem, Connection Size 2: 2 in, 250 psi, 316 Stainless Steel, Dimensions: 3-1/8 in Dia x 4-3/4 in L, For Use With: Notched NOS Ferrules

California residents see Prop 65 WARNINGS

Fitting Shape      :      Type C
Connection Size 1      :      2 in
Connection Size 2      :      2 in
Pressure Rating      :      250 psi
Material      :      316 Stainless Steel
Dimensions      :      3-1/8 in Dia x 4-3/4 in L
Fitting Type      :      Coupler
For Use With      :      Notched NOS Ferrules
Connection 1      :      2 in Fitting
Connection 2      :      2 in Hose Stem
Connection Type 1      :      Fitting
Connection Type 2      :      Hose Stem
Gender 1      :      Female
  • The largest advantage of the notched design is that the coupling can be removed from a damaged hose by cutting away the ferrule, without necessarily damaging the fitting
  • After inspection of the fitting to determine its suitability for reuse, it can be reinstalled into another hose by using a new ferrule
  • Buna-N seal material
  • Produced to interchange with all product produced to commercial item description A-A-59326D

Safety Notes:

  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
  • For use at elevated temperature or other unusual operating conditions, consult Dixon®.
  • Only use the NOS shank with the NOS ferrules.
  • Due to differences in dimensions and tolerances for safety reasons, do not use other manufacturer's stems or ferrules with Dixon® products.
  • For hose outside diameters of 2-4/64 in and below, the couplings are crimp only.
  • For hose outside diameters of 2-5/64 in and above, the couplings can be crimped or swaged.
  • Contact Dixon® for swage or crimp recommendations.
  • You must purchase a fitting and the matching ferrule to create an assembly.
