Dixon® 250-F-AL

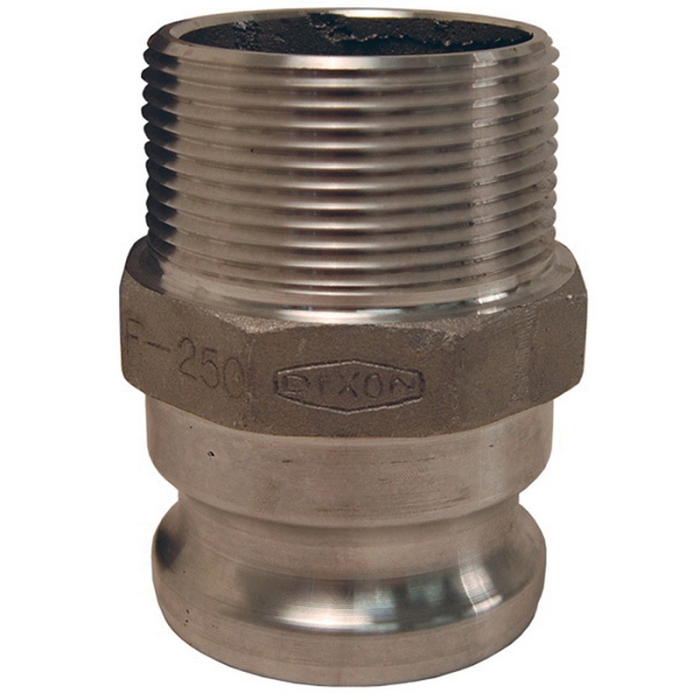

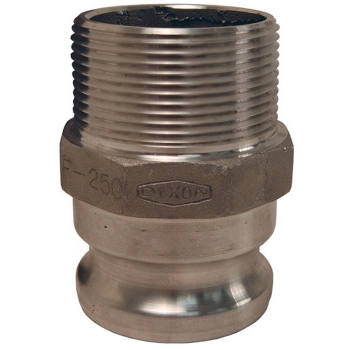

Dixon® 250-F-AL Aluminum Cam and Groove Type F Adapter, 2-1/2 in Male Adapter x 2-1/2 in MNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 250-F-AL
  • MPN: 250-F-AL
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Cam and Groove Type F Adapter, Connection Type 1: Fitting, Gender 1: Male, Connection Size 1: 2-1/2 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 2-1/2 in, Thread Size 2: 2-1/2-8, Hex Size: 3-1/4 in, 150 psi, Aluminum, Dimensions: 2-63/64 in Dia x 4-3/8 in L x 3-1/4 in W

California residents see Prop 65 WARNINGS

Fitting Shape      :      Type F
Connection Size 1      :      2-1/2 in
Connection Size 2      :      2-1/2 in
Thread Size 2      :      2-1/2-8
Hex Size      :      3-1/4 in
Pressure Rating      :      150 psi
Material      :      Aluminum
Dimensions      :      2-63/64 in Dia x 4-3/8 in L x 3-1/4 in W
Fitting Type      :      Adapter
Connection 1      :      2-1/2 in Fitting
Connection 2      :      2-1/2 in NPT
Connection Type 1      :      Fitting
Connection Type 2      :      NPT
Gender 1      :      Male
Gender 2      :      Male
  • Produced to interchange with all product produced to commercial item description A-A-59326D
  • 356T6 aluminum construction

Applications: For use with liquids

Safety Notes:

  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
  • For use at elevated temperature or other unusual operating conditions, consult Dixon®.
