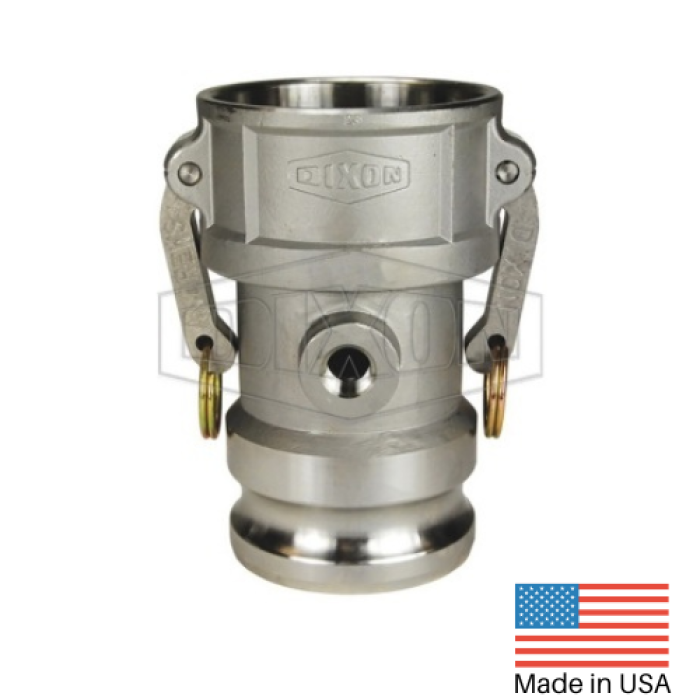

Dixon® Cam and Groove Type DA Coupling with 1/2 in Port, Connection Type 1: Fitting, Gender 1: Female, Connection Size 1: 3 in, Connection Type 2: Fitting, Gender 2: Male, Connection Size 2: 3 in, 125 psi, 316 Stainless Steel
California residents see Prop 65 WARNINGS
| Fitting Shape | : | Type DA |
| Connection Size 1 | : | 3 in |
| Connection Size 2 | : | 3 in |
| Pressure Rating | : | 125 psi |
| Material | : | 316 Stainless Steel |
| Fitting Type | : | Coupling |
| Connection 1 | : | 3 in Fitting |
| Connection 2 | : | 3 in Fitting |
| Connection Type 1 | : | Fitting |
| Connection Type 2 | : | Fitting |
| Gender 1 | : | Female |
| Gender 2 | : | Male |
- Port is located on the lug
- Buna-N seal material
- Produced to interchange with all product produced to commercial item description A-A-59326D
Applications: For use with liquids
Safety Notes:
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
- For use at elevated temperature or other unusual operating conditions, consult Dixon®.
