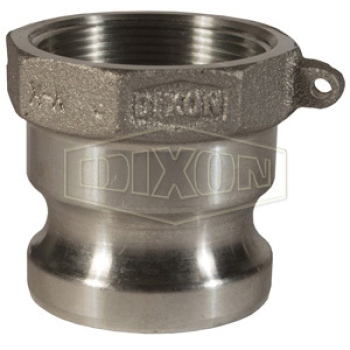

Dixon® Cam and Groove Type A Adapter, Connection Type 1: Fitting, Gender 1: Male, Connection Size 1: 1/2 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1 in, 150 psi, Aluminum, Dimensions: 1-11/16 in L
California residents see Prop 65 WARNINGS
| Fitting Shape | : | Type A |
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Thread Size 2 | : | 1/2-14 |
| Hex Size | : | 1 in |
| Pressure Rating | : | 150 psi |
| Material | : | Aluminum |
| Dimensions | : | 1-11/16 in L |
| Fitting Type | : | Adapter |
| Connection 1 | : | 1/2 in Fitting |
| Connection 2 | : | 1/2 in NPT |
| Connection Type 1 | : | Fitting |
| Connection Type 2 | : | NPT |
| Gender 1 | : | Male |
| Gender 2 | : | Female |
- Precision machined to rigid tolerances
- Produced to interchange with all product produced to commercial item description A-A-59326D
- 356T6 aluminum construction
Applications: For use with liquids
Safety Notes:
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating is based on the seal of the mating part.
- Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
- For use at elevated temperature or other unusual operating conditions, consult Dixon®.
- Dixon® and Boss-Lock™ cam and groove couplings do not interchange in the 1/2 in size.
