Dixon® 500-A-BR

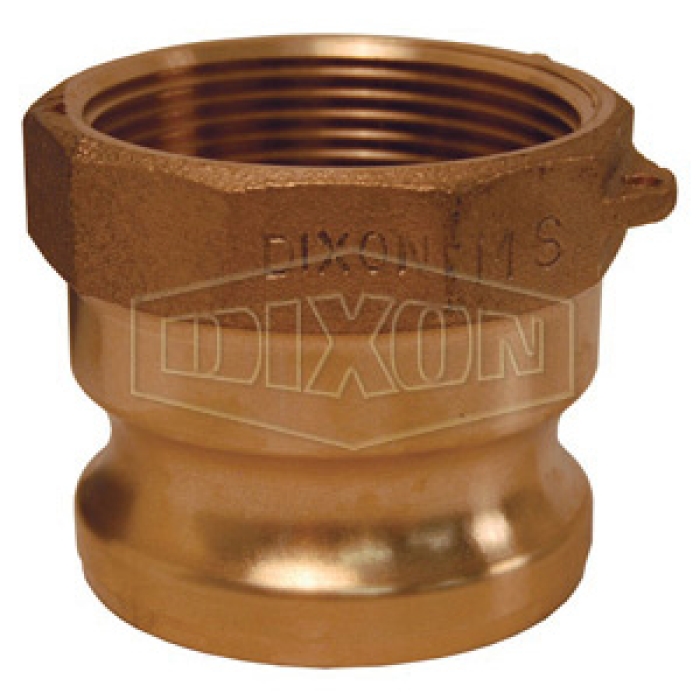

Dixon® 500-A-BR Brass Cam and Groove Type A Adapter, 5 in Male Adapter x 5 in FNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 500-A-BR
  • MPN: 500-A-BR
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Cam and Groove Type A Adapter, Connection Type 1: Fitting, Gender 1: Male, Connection Size 1: 5 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 5 in, Thread Size 2: 5-8, Hex Size: 5-15/16 in, 75 psi, Brass, Dimensions: 5-3/4 in Dia x 3-17/32 in L

California residents see Prop 65 WARNINGS

Fitting Shape      :      Type A
Connection Size 1      :      5 in
Connection Size 2      :      5 in
Thread Size 2      :      5-8
Hex Size      :      5-15/16 in
Pressure Rating      :      75 psi
Material      :      Brass
Dimensions      :      5-3/4 in Dia x 3-17/32 in L
Fitting Type      :      Adapter
Connection 1      :      5 in Fitting
Connection 2      :      5 in NPT
Connection Type 1      :      Fitting
Connection Type 2      :      NPT
Gender 1      :      Male
Gender 2      :      Female
  • Precision machined to rigid tolerances
  • Produced to interchange with all product produced to commercial item description A-A-59326D

Applications: For use with liquids

Safety Notes:

  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
  • For use at elevated temperature or other unusual operating conditions, consult Dixon®.
