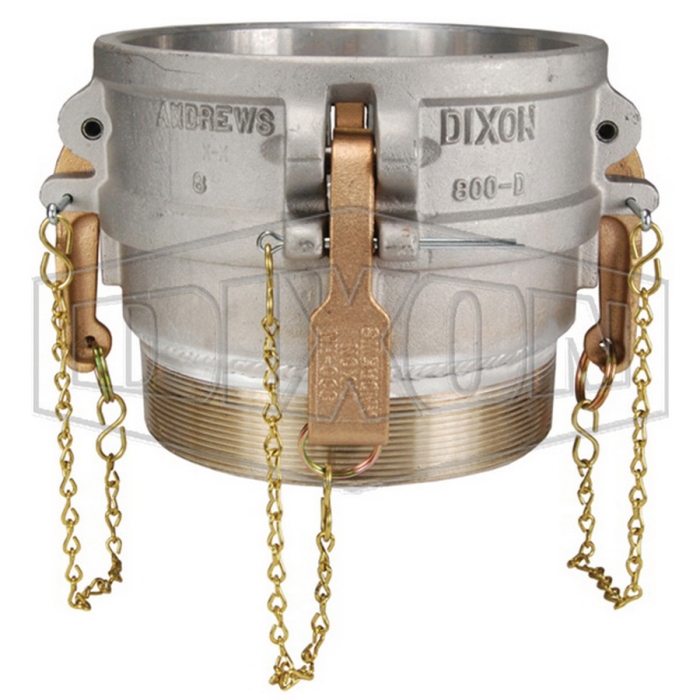

Dixon® Cam and Groove Type B Coupler, Connection Type 1: Fitting, Gender 1: Female, Connection Size 1: 8 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 8 in, Thread Size 2: 8-8, 50 psi, Aluminum, Dimensions: 10-5/32 in Dia
California residents see Prop 65 WARNINGS
| Fitting Shape | : | Type B |
| Connection Size 1 | : | 8 in |
| Connection Size 2 | : | 8 in |
| Thread Size 2 | : | 8-8 |
| Pressure Rating | : | 50 psi |
| Material | : | Aluminum |
| Dimensions | : | 10-5/32 in Dia |
| Fitting Type | : | Coupler |
| Connection 1 | : | 8 in Fitting |
| Connection 2 | : | 8 in NPT |
| Connection Type 1 | : | Fitting |
| Connection Type 2 | : | NPT |
| Gender 1 | : | Female |
| Gender 2 | : | Male |
- Precision machined to rigid tolerances
- Stainless pins will not rust or bind, providing great strength and safety
- Recess holds gasket firmly in place ensures proper placement
- Buna-N gasket
- Durable stainless steel cam arm pins
- Produced to interchange with all product produced to commercial item description A-A-59326D
- 356T6 aluminum construction
- Produced as a welded fabrication
Applications: For use with liquids
Safety Notes:
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
- For use at elevated temperature or other unusual operating conditions, consult Dixon®.
- Dixon® and Boss-Lock™ cam and groove couplings do not interchange in the 8 in size.
