Dixon® 800-DL-AL

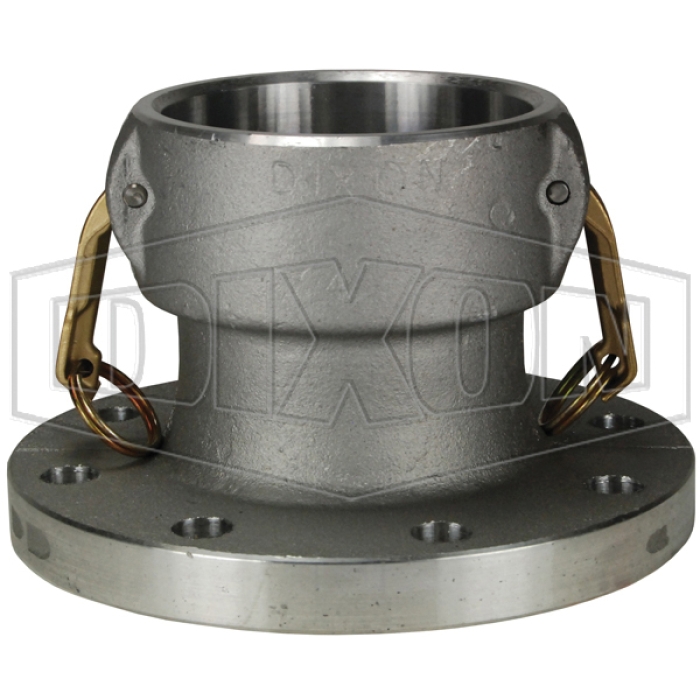

Dixon® 800-DL-AL Aluminum Cam and Groove Coupler, 8 in Female Coupler x 8 in Flange

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 800-DL-AL
  • MPN: 800-DL-AL
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Cam and Groove Coupler, Connection Type 1: Fitting, Gender 1: Female, Connection Size 1: 8 in, Connection Type 2: Flange, Connection Size 2: 8 in, 50 psi, Aluminum, Dimensions: 13-1/2 in Dia x 9-5/32 in L, For Use With: #150 Flange

California residents see Prop 65 WARNINGS

Fitting Shape      :      Flange
Connection Size 1      :      8 in
Connection Size 2      :      8 in
Pressure Rating      :      50 psi
Material      :      Aluminum
Dimensions      :      13-1/2 in Dia x 9-5/32 in L
Fitting Type      :      Coupler
For Use With      :      #150 Flange
Connection 1      :      8 in Fitting
Connection 2      :      8 in Flange
Connection Type 1      :      Fitting
Connection Type 2      :      Flange
Gender 1      :      Female
  • Flange has flat face
  • Buna-N seal material
  • Produced to interchange with all product produced to commercial item description A-A-59326D
  • 356T6 aluminum construction

Applications: For use with liquids

Safety Notes:

  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
  • For use at elevated temperature or other unusual operating conditions, consult Dixon®.
