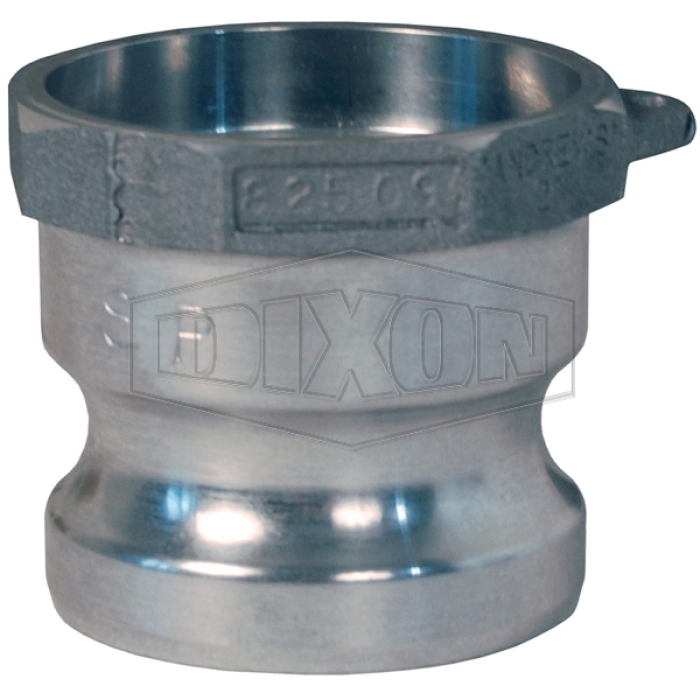

Dixon® Cam and Groove Adapter, Connection Type 1: Fitting, Gender 1: Male, Connection Size 1: 8 in, Connection Type 2: Socket Weld, Connection Size 2: 8 in, 50 psi, Aluminum, Dimensions: 9-3/32 in Dia x 3-5/16 in L, For Use With: SCH 40 Pipe
California residents see Prop 65 WARNINGS
| Fitting Shape | : | Socket Weld |
| Connection Size 1 | : | 8 in |
| Connection Size 2 | : | 8 in |
| Pressure Rating | : | 50 psi |
| Material | : | Aluminum |
| Dimensions | : | 9-3/32 in Dia x 3-5/16 in L |
| Fitting Type | : | Adapter |
| For Use With | : | SCH 40 Pipe |
| Connection 1 | : | 8 in Fitting |
| Connection 2 | : | 8 in Weld |
| Connection Type 1 | : | Fitting |
| Connection Type 2 | : | Socket Weld |
| Gender 1 | : | Male |
- Produced to interchange with all product produced to commercial item description A-A-59326D
- 356T6 aluminum construction
Applications: For use with liquids
Safety Notes:
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Final weld preparation, as with all weld fittings, is the responsibility of the welder.
- Line drawings are for reference only.
- Consult Dixon® for specific dimensions.
- Dixon® and Boss-Lock™ cam and groove couplings do not interchange in the 8 in size.
- Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard Buna-N seal installed.
- For use at elevated temperature or other unusual operating conditions, consult Dixon®.
