Dixon® 90PPC150

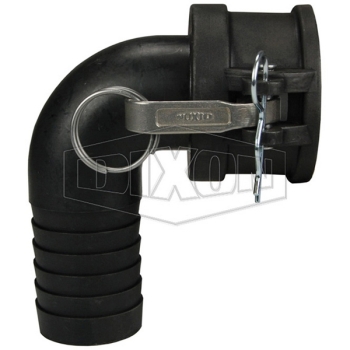

Dixon® 90PPC150 Polypropylene Cam and Groove Type C 90 deg Elbow, 1-1/2 in Female Coupler x 1-1/2 in Hose Shank

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 90PPC150
  • MPN: 90PPC150
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Cam and Groove Type C 90 deg Elbow, Connection Type 1: Fitting, Gender 1: Female, Connection Size 1: 1-1/2 in, Connection Type 2: Hose Stem, Connection Size 2: 1-1/2 in, 100 psi, Polypropylene

California residents see Prop 65 WARNINGS

Fitting Shape      :      Type C
Connection Size 1      :      1-1/2 in
Connection Size 2      :      1-1/2 in
Pressure Rating      :      100 psi
Material      :      Polypropylene
Fitting Type      :      90 deg Elbow
Connection 1      :      1-1/2 in Fitting
Connection 2      :      1-1/2 in Hose Stem
Connection Type 1      :      Fitting
Connection Type 2      :      Hose Stem
Gender 1      :      Female
  • Manufactured from glass-filled polypropylene
  • EPDM gasket
  • 304 stainless steel handles and pins

Safety Notes:

  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
  • For use at elevated temperature or other unusual operating conditions, consult Dixon®.
  • Not recommended for use with PTFE gaskets.
  • Polypropylene cam and groove should not be mixed with metal fittings.
