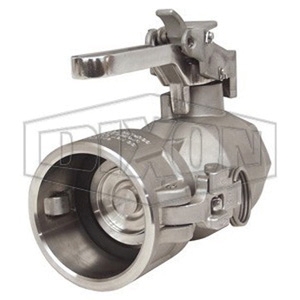

Dixon® Cam and Groove Actuator Style Coupler with FKM Seal, Connection Type 1: Fitting, Gender 1: Female, Connection Size 1: 2 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1-1/2 in, 210 psi, 316 Stainless Steel, For Use With: Standard Cam and Groove Dust Plugs Sized One Size Larger Than the Dry Disconnect Size
California residents see Prop 65 WARNINGS
| Connection Size 1 | : | 2 in |
| Connection Size 2 | : | 1-1/2 in |
| Pressure Rating | : | 210 psi |
| Material | : | 316 Stainless Steel |
| Fitting Type | : | Coupler |
| For Use With | : | Standard Cam and Groove Dust Plugs Sized One Size Larger Than the Dry Disconnect Size |
| Connection 1 | : | 2 in Fitting |
| Connection 2 | : | 1-1/2 in NPT |
| Connection Type 1 | : | Fitting |
| Connection Type 2 | : | NPT |
| Gender 1 | : | Female |
| Gender 2 | : | Female |
- The D2C style coupler does not have an internal seal cylinder, therefore the couplings do not automatically close
- Helps eliminate the possibility of costly spills
- EZ Boss-Lock™ automatic locking cam arms provide added security from accidental opening due to cam arms getting snagged or vibration
- Very easy to use, just close the arms and they lock, to open simply lift the lever
- 304 stainless steel internal components
- Stainless steel locking lever standard
- EZ Boss-Lock™ cam arms
- Couplers work with the DBA (Bayloc™ dry disconnect) poppeted adapters in applications where automatic closure for the coupler is not desired
- Compatible with most other brands of cam and groove style dry disconnects
Applications: Suited for vapor recovery, suction pump line and other applications where it is necessary to easily drain the hose or pipe for cleaning
Safety Notes:
- For pressure ratings at other temperatures and for chemical compatibility, size and material selection contact Dixon®.
Catalog/Catalog Cut Sheet
