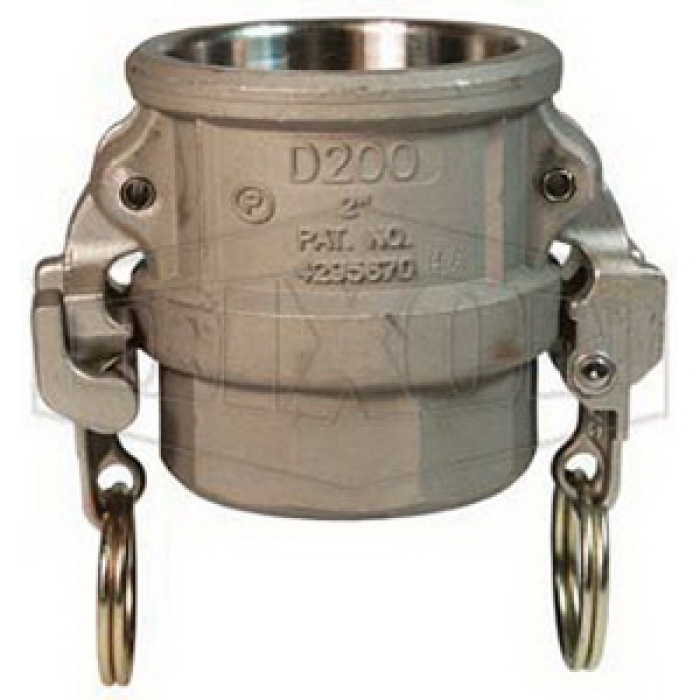

Dixon® EZ Boss-Lock™ Cam and Groove Type D Coupler, Connection Type 1: Fitting, Gender 1: Female, Connection Size 1: 2 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 2 in, Thread Size 2: 2-11-1/2, 250 psi, Hastelloy®, Dimensions: 3-1/8 in Dia x 3-3/16 in L
California residents see Prop 65 WARNINGS
| Fitting Shape | : | Type D |
| Connection Size 1 | : | 2 in |
| Connection Size 2 | : | 2 in |
| Thread Size 2 | : | 2-11-1/2 |
| Pressure Rating | : | 250 psi |
| Material | : | Hastelloy® |
| Dimensions | : | 3-1/8 in Dia x 3-3/16 in L |
| Fitting Type | : | Coupler |
| Connection 1 | : | 2 in Fitting |
| Connection 2 | : | 2 in NPT |
| Connection Type 1 | : | Fitting |
| Connection Type 2 | : | NPT |
| Gender 1 | : | Female |
| Gender 2 | : | Female |
- 316 stainless steel EZ Boss-Lock™ cam arms
- 302 stainless steel pins
- Yellow zinc-plated 12 ga steel wire rings
- Supplied with FKM-A gasket
- Produced to interchange with all product produced to commercial item description A-A-59326D
- Hastelloy® CW12MW
Applications: For use with liquids
Safety Notes:
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Under no circumstances should the EZ Boss-Lock™ cam arms be used on any fitting not specifically designed for their use.
- Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
- For use at elevated temperature or other unusual operating conditions, consult Dixon®.
Specification Sheet
