Dixon® RC300EZPF

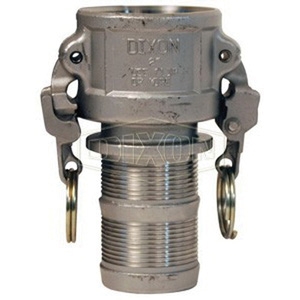

Dixon® EZ Boss-Lock™ RC300EZPF 316 Stainless Steel Cam and Groove Type C Coupler with Phono Finish Shank, 3 in Female Coupler x 3 in Hose Shank
- Manufacturers: Dixon
- Brand Name: Dixon®
- Tipco Part No: DXN RC300EZPF
- MPN: RC300EZPF
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Dixon® EZ Boss-Lock™ Cam and Groove Type C Coupler with Phono Finish Shank, Connection Type 1: Fitting, Gender 1: Female, Connection Size 1: 3 in, Connection Type 2: Hose Stem, Connection Size 2: 3 in, 125 psi, 316 Stainless Steel, Dimensions: 7 in L x 9-29/32 in W, For Use With: 3/4 in Wide Band Clamp
California residents see Prop 65 WARNINGS
| Fitting Shape | : | Type C |
| Connection Size 1 | : | 3 in |
| Connection Size 2 | : | 3 in |
| Pressure Rating | : | 125 psi |
| Material | : | 316 Stainless Steel |
| Dimensions | : | 7 in L x 9-29/32 in W |
| Fitting Type | : | Coupler |
| For Use With | : | 3/4 in Wide Band Clamp |
| Connection 1 | : | 3 in Fitting |
| Connection 2 | : | 3 in Hose Stem |
| Connection Type 1 | : | Fitting |
| Connection Type 2 | : | Hose Stem |
| Gender 1 | : | Female |
- In testing tank transport hoses from a wide variety of manufacturers, the Boss-Lock-PF fitting showed significant improvement in hose coupling retention over the conventional cam and groove shank design
- Resistant to accidental disconnection when dragged
- Rotating action helps keep the locking device free of debris
- Designed to protect critical parts from impact and to withstand rugged use
- Produced to interchange with all product produced to commercial item description A-A-59326D
- The release lever opens in the direction opposite to the cam arm, so movements that tend to open the release lever also tend to close the cam arm
Applications: The shank design on these fittings was developed specifically for chemical transport hoses having Cross-linked Polyethylene (XLPE) or Ultra High Molecular Weight Polyethylene (UHMW) tubes, where shank retention can be a problem when using conventional band clamps
Safety Notes:
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Under no circumstances should the EZ Boss-Lock™ cam arms be used on any fitting not specifically designed for their use.
- Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
- For use at elevated temperature or other unusual operating conditions, consult Dixon®.
