Dixon® G125-D-BR

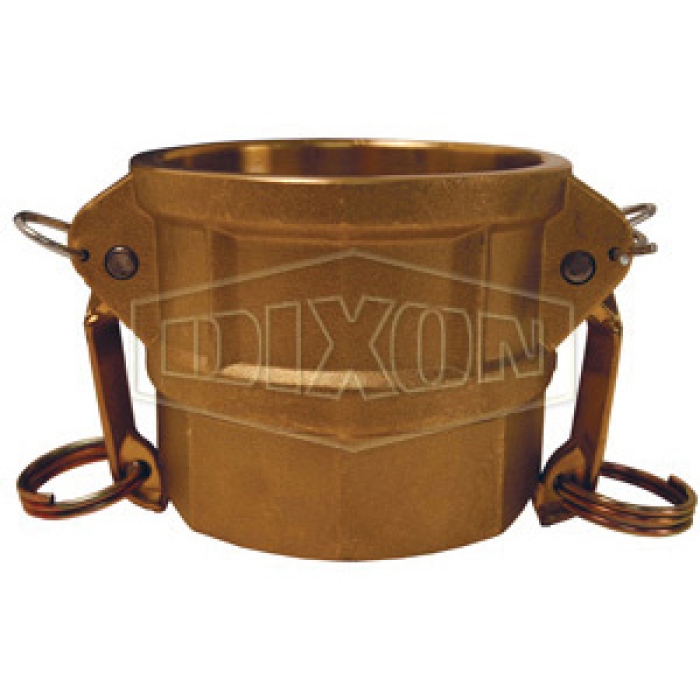

Dixon® G125-D-BR Forged Brass Global Cam and Groove Type D Coupler, 1-1/4 in Female Coupler x 1-1/4 in FNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN G125-D-BR
  • MPN: G125-D-BR
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Global Cam and Groove Type D Coupler, Connection Type 1: Fitting, Gender 1: Female, Connection Size 1: 1-1/4 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1-1/4 in, Thread Size 2: 1-1/4-11-1/2, 250 psi, Forged Brass, Dimensions: 2-17/32 in Dia x 3-1/16 in L

California residents see Prop 65 WARNINGS

Fitting Shape      :      Type D
Connection Size 1      :      1-1/4 in
Connection Size 2      :      1-1/4 in
Thread Size 2      :      1-1/4-11-1/2
Pressure Rating      :      250 psi
Material      :      Forged Brass
Dimensions      :      2-17/32 in Dia x 3-1/16 in L
Fitting Type      :      Coupler
Connection 1      :      1-1/4 in Fitting
Connection 2      :      1-1/4 in NPT
Connection Type 1      :      Fitting
Connection Type 2      :      NPT
Gender 1      :      Female
Gender 2      :      Female
  • Buna seal
  • Designed to interchange with all products produced to A-A-59326D

Applications: For use with liquids

Safety Notes:

  • Under no circumstances should cam and groove couplings be used for compressed air or steam service.
  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
