Dixon® G200-F-AL DXN G200-F-AL | Tipco Technologies
Dixon® G200-F-AL
Send Print
  1. pin-int

Dixon® G200-F-AL

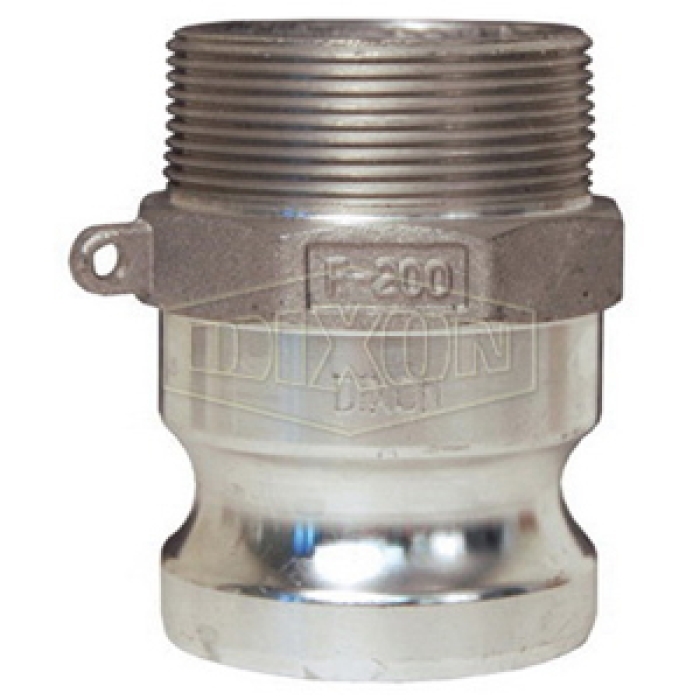

Dixon® G200-F-AL Aluminum Global Cam and Groove Type F Adapter, 2 in Male Adapter x 2 in MNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN G200-F-AL
  • MPN: G200-F-AL
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Global Cam and Groove Type F Adapter, Connection Type 1: Fitting, Gender 1: Male, Connection Size 1: 2 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 2 in, 250 psi, Aluminum, Dimensions: 3-13/32 in L x 3-7/32 in W

California residents see Prop 65 WARNINGS

Fitting Shape      :      Type F
Connection Size 1      :      2 in
Connection Size 2      :      2 in
Pressure Rating      :      250 psi
Material      :      Aluminum
Dimensions      :      3-13/32 in L x 3-7/32 in W
Fitting Type      :      Adapter
Connection 1      :      2 in Fitting
Connection 2      :      2 in NPT
Connection Type 1      :      Fitting
Connection Type 2      :      NPT
Gender 1      :      Male
Gender 2      :      Male
  • Designed to interchange with all products produced to A-A-59326D

Applications: For use with liquids

Safety Notes:

  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
  • video http://youtu.be/Vgth_9M5IRM?list=PL10BD55ADAF82DEDA
