Dixon® G400-E-BRCR

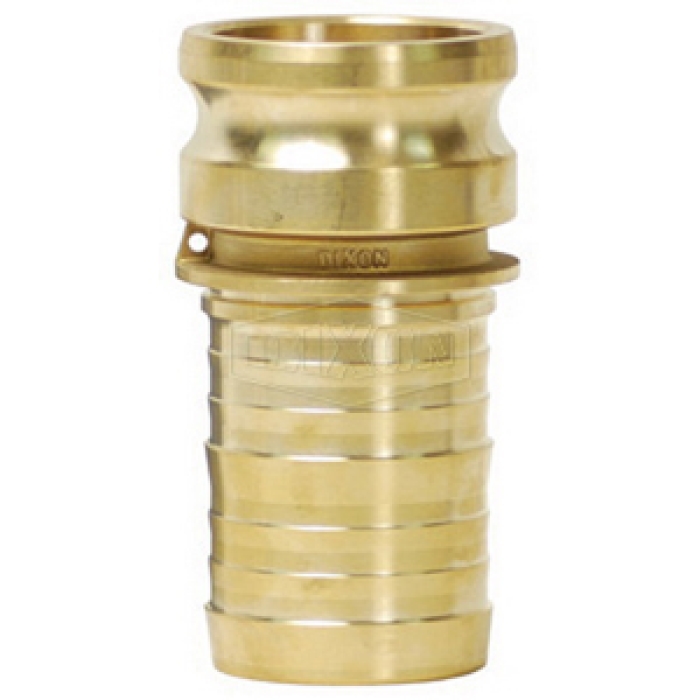

Dixon® King Crimp™ G400-E-BRCR Forged Brass Global Crimp Style Cam and Groove Type E Adapter, 4 in Male Adapter x 4 in Hose Shank
- Manufacturers: Dixon
- Brand Name: Dixon®
- Tipco Part No: DXN G400-E-BRCR
- MPN: G400-E-BRCR
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Dixon® King Crimp™ Global Crimp Style Cam and Groove Type E Adapter, Connection Type 1: Fitting, Gender 1: Male, Connection Size 1: 4 in, Connection Type 2: Hose Stem, Connection Size 2: 4 in, 100 psi, Forged Brass, Dimensions: 4-23/32 in Dia x 6-31/32 in L, For Use With: King Crimp™ Sleeves and Ferrules
California residents see Prop 65 WARNINGS
| Fitting Shape | : | Type E |
| Connection Size 1 | : | 4 in |
| Connection Size 2 | : | 4 in |
| Pressure Rating | : | 100 psi |
| Material | : | Forged Brass |
| Dimensions | : | 4-23/32 in Dia x 6-31/32 in L |
| Fitting Type | : | Adapter |
| For Use With | : | King Crimp™ Sleeves and Ferrules |
| Connection 1 | : | 4 in Fitting |
| Connection 2 | : | 4 in Hose Stem |
| Connection Type 1 | : | Fitting |
| Connection Type 2 | : | Hose Stem |
| Gender 1 | : | Male |
- ASTM C38000 forged brass
Applications: For use with liquids
Safety Notes:
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
- For use at elevated temperature or other unusual operating conditions, consult Dixon®.
- Only use the crimp style shanks with the crimp style sleeves and ferrules.
- Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon® products.
