Dixon® PPA50

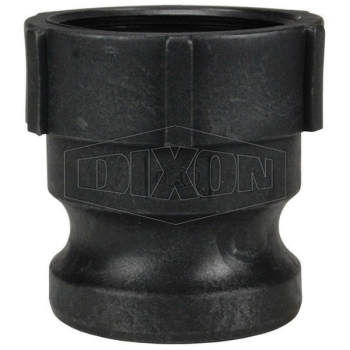

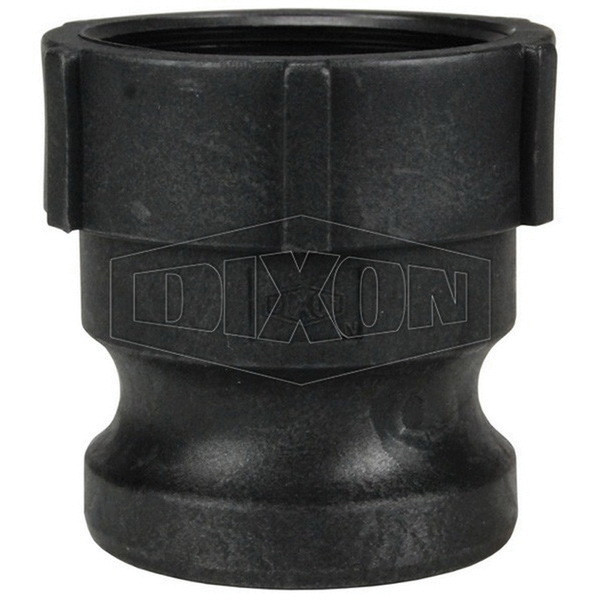

Dixon® PPA50 Polypropylene Cam and Groove Type A Adapter, 3/4 in Male Adapter x 1/2 in FNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN PPA50
  • MPN: PPA50
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Cam and Groove Type A Adapter, Connection Type 1: Fitting, Gender 1: Male, Connection Size 1: 3/4 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/2 in, 125 psi, Polypropylene, Dimensions: 1-19/32 in Dia x 1-5/8 in L

California residents see Prop 65 WARNINGS

Fitting Shape      :      Type A
Connection Size 1      :      3/4 in
Connection Size 2      :      1/2 in
Pressure Rating      :      125 psi
Material      :      Polypropylene
Dimensions      :      1-19/32 in Dia x 1-5/8 in L
Fitting Type      :      Adapter
Connection 1      :      3/4 in Fitting
Connection 2      :      1/2 in NPT
Connection Type 1      :      Fitting
Connection Type 2      :      NPT
Gender 1      :      Male
Gender 2      :      Female
  • Manufactured from glass-filled polypropylene
  • 1/2 in couplers and adapters will interchange with 3/4 in couplers and adapters, only the threads and barbs are 1/2 in

Applications: For use with liquids

Safety Notes:

  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
  • For use at elevated temperature or other unusual operating conditions, consult Dixon®.
  • Not recommended for use with PTFE gaskets.
