Dixon® PPE100

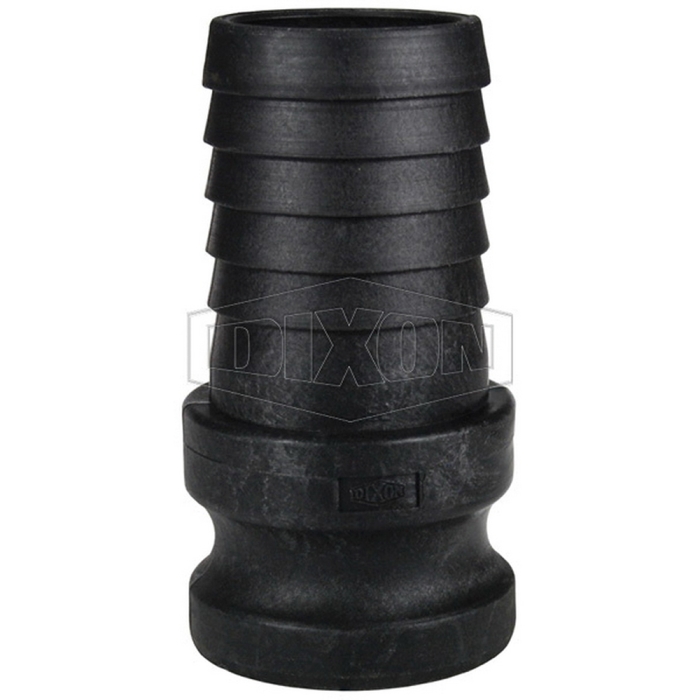

Dixon® PPE100 Polypropylene Cam and Groove Type E Adapter, 1 in Male Adapter x 1 in Hose Shank

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN PPE100
  • MPN: PPE100
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Cam and Groove Type E Adapter, Connection Type 1: Fitting, Gender 1: Male, Connection Size 1: 1 in, Connection Type 2: Hose Stem, Connection Size 2: 1 in, 125 psi, Polypropylene, Dimensions: 3-5/8 in L x 1-15/16 in W, 70 deg F

California residents see Prop 65 WARNINGS

Fitting Shape      :      Type E
Connection Size 1      :      1 in
Connection Size 2      :      1 in
Pressure Rating      :      125 psi
Material      :      Polypropylene
Dimensions      :      3-5/8 in L x 1-15/16 in W
Fitting Type      :      Adapter
Temperature Rating      :      70 deg F
Connection 1      :      1 in Fitting
Connection 2      :      1 in Hose Stem
Connection Type 1      :      Fitting
Connection Type 2      :      Hose Stem
Gender 1      :      Male
  • Manufactured from glass-filled polypropylene

Safety Notes:

  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
  • For use at elevated temperature or other unusual operating conditions, consult Dixon®.
  • Polypropylene cam and groove should not be mixed with metal fittings.
  • Not recommended for use with PTFE gaskets.
