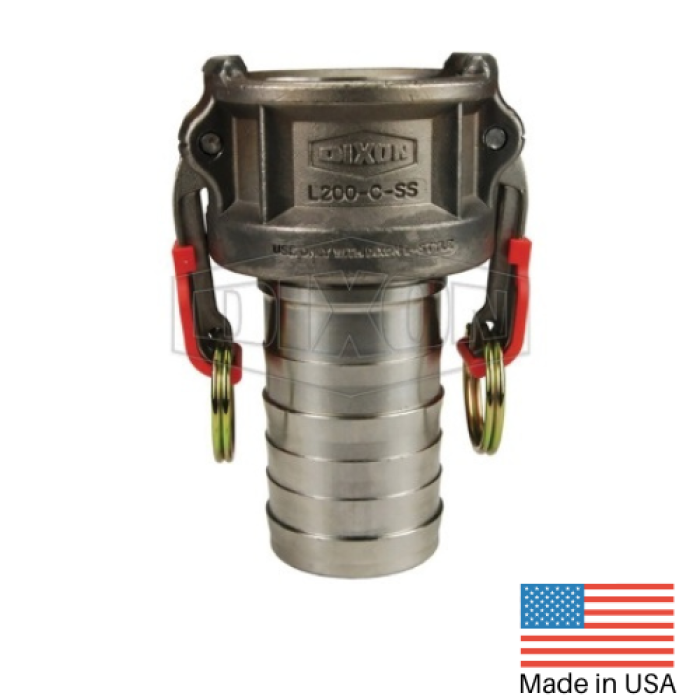

Dixon® Vent-Lock™ Safety Cam and Groove Type C Coupler, Connection Type 1: Fitting, Gender 1: Female, Connection Size 1: 1 in, Connection Type 2: Hose Stem, Connection Size 2: 1 in, 250 psi, 316 Stainless Steel, Dimensions: 4-17/32 in L x 2-7/16 in W, For Use With: Ferrules, Sleeves, and Bands
California residents see Prop 65 WARNINGS
| Fitting Shape | : | Type C |
| Connection Size 1 | : | 1 in |
| Connection Size 2 | : | 1 in |
| Pressure Rating | : | 250 psi |
| Material | : | 316 Stainless Steel |
| Dimensions | : | 4-17/32 in L x 2-7/16 in W |
| Fitting Type | : | Coupler |
| For Use With | : | Ferrules, Sleeves, and Bands |
| Connection 1 | : | 1 in Fitting |
| Connection 2 | : | 1 in Hose Stem |
| Connection Type 1 | : | Fitting |
| Connection Type 2 | : | Hose Stem |
| Gender 1 | : | Female |
- Safety release cam and groove couplings permit the release of static pressure when disconnecting hose assemblies
- Venting system protects operator from being sprayed with hazardous or non-hazardous fluids or solids
- Safety orange cam arms
- Buna-N seal material
Applications: Transfer of fluids and solids, with a safe disconnection
Safety Notes:
- Pressure rating recommendation is based on the use of mating Vent-Lock™ L-style fittings at ambient temperature 70 deg F with standard Buna-N seal installed, for use at elevated temperature or other unusual operating conditions, consult Dixon®.
- Does not interchange with standard cam and groove products use only with Vent-Lock™ L-style fittings.
