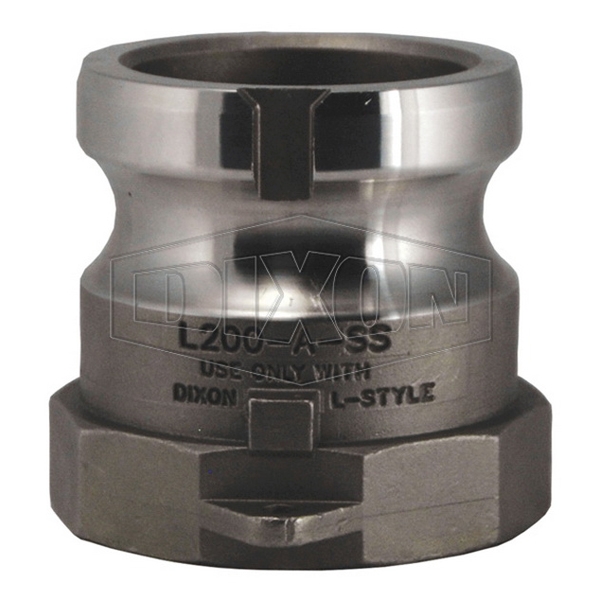

Dixon® Vent-Lock™ Safety Cam and Groove Type A Adapter, Connection Type 1: Fitting, Gender 1: Male, Connection Size 1: 3 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 3 in, Thread Size 2: 3-8, Hex Size: 3-3/4 in, 150 psi, 316 Stainless Steel, Dimensions: 2-29/32 in L, 70 deg F, For Use With: Ferrules, Sleeves, Bands and Other Reliable Attachment Options
California residents see Prop 65 WARNINGS
| Fitting Shape | : | Type A |
| Connection Size 1 | : | 3 in |
| Connection Size 2 | : | 3 in |
| Thread Size 2 | : | 3-8 |
| Hex Size | : | 3-3/4 in |
| Pressure Rating | : | 150 psi |
| Material | : | 316 Stainless Steel |
| Dimensions | : | 2-29/32 in L |
| Fitting Type | : | Adapter |
| Temperature Rating | : | 70 deg F |
| For Use With | : | Ferrules, Sleeves, Bands and Other Reliable Attachment Options |
| Connection 1 | : | 3 in Fitting |
| Connection 2 | : | 3 in NPT |
| Connection Type 1 | : | Fitting |
| Connection Type 2 | : | NPT |
| Gender 1 | : | Male |
| Gender 2 | : | Female |
- Safety release cam and groove couplings permit the release of static pressure when disconnecting hose assemblies
- Venting system protects operator from being sprayed with hazardous or non-hazardous fluids or solids
Applications: Transfer of fluids and solids, with a safe disconnection
Safety Notes:
- Pressure rating recommendation is based on the use of mating Vent-Lock™ L-style fittings at ambient temperature 70 deg F with standard Buna-N seal installed, for use at elevated temperature or other unusual operating conditions, consult Dixon®.
- Does not interchange with standard cam and groove products use only with Vent-Lock™ L-style fittings.
Catalog/Catalog Cut Sheet
