Dixon® BC61-200

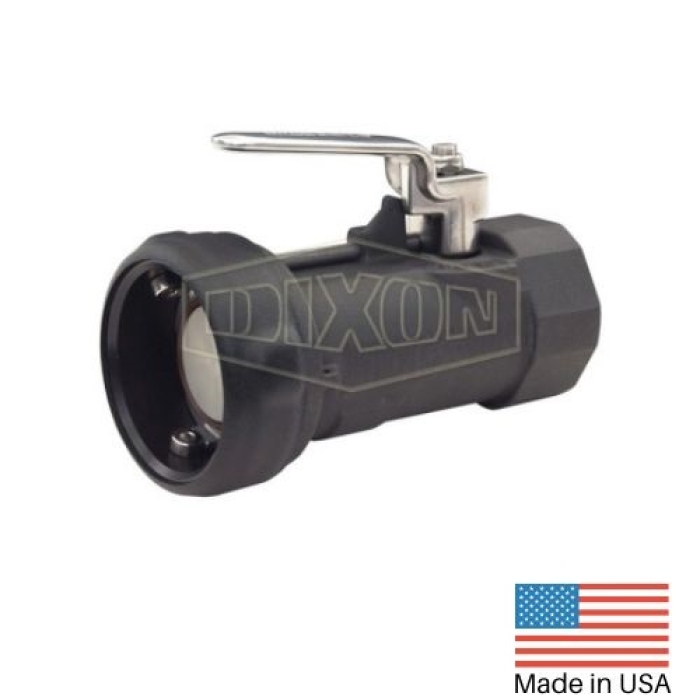

Dixon® BC61-200 Anodized/Hard-Coated Aluminum Bayonet Style Dry Disconnect Straight Coupler with Buna Seal, 2 in Female Coupler x 2 in FNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN BC61-200
  • MPN: BC61-200
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Bayonet Style Dry Disconnect Straight Coupler with Buna Seal, Connection Type 1: Fitting, Gender 1: Female, Connection Size 1: 2 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 2 in, 85 psi, Aluminum, Finish: Anodized/Hard-Coated

California residents see Prop 65 WARNINGS

Connection Size 1      :      2 in
Connection Size 2      :      2 in
Pressure Rating      :      85 psi
Material      :      Aluminum
Finish      :      Anodized/Hard-Coated
Fitting Type      :      Coupler
Connection 1      :      2 in Fitting
Connection 2      :      2 in NPT
Connection Type 1      :      Fitting
Connection Type 2      :      NPT
Gender 1      :      Female
Gender 2      :      Female
  • Helps eliminate the possibility of costly spills
  • Buna seal
  • Canadian registration number CRN# OH14055 all provinces
  • Interchangeable with the Emco Wheaton® Dry Break™

Applications: Bayonet dry disconnect fittings are ideally suited for the spill-less transfer of petroleum products such as fuel oil, lube oil blending, and tank truck delivery. The design of the Bayco bayonet dry disconnect system ensures a spill-free connection, fluid cannot flow until couplings are connected together and the valve is opened. The coupling can then not be disconnected until the valve handle is closed

Safety Notes:

  • For pressure ratings at other temperatures, contact Dixon®.
