Dixon® DDC300SS

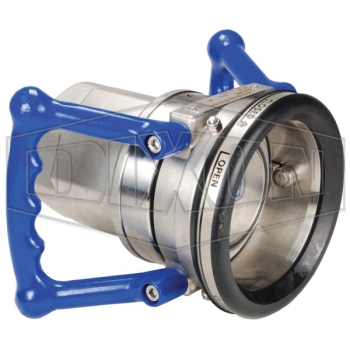

Dixon® DDC300SS 316 Stainless Steel Mann Tek Dry Disconnect Hose Unit Coupler, 119 mm Female Coupler x 3 in FNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN DDC300SS
  • MPN: DDC300SS
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Mann Tek Dry Disconnect Hose Unit Coupler, Connection Type 1: Fitting, Gender 1: Female, Connection Size 1: 119 mm, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 3 in, 360 psi, 316 Stainless Steel, Dimensions: 163 mm Dia x 201 mm L, For Use With: Composite (Polyeten PE-HD 300) Plug

California residents see Prop 65 WARNINGS

Connection Size 1      :      119 mm
Connection Size 2      :      3 in
Pressure Rating      :      360 psi
Material      :      316 Stainless Steel
Dimensions      :      163 mm Dia x 201 mm L
Fitting Type      :      Coupler
For Use With      :      Composite (Polyeten PE-HD 300) Plug
Connection 1      :      119 mm Fitting
Connection 2      :      3 in NPT
Connection Type 1      :      Fitting
Connection Type 2      :      NPT
Gender 1      :      Female
Gender 2      :      Female
  • Coupler has built-in swivel
  • Shaft journal in stainless steel embedded in PTFE to eliminate seizure
  • The protective ring is a specially formulated, weather-resistant and electrically conductive rubber compound
  • Selectivity- to avoid product contamination, selective versions of the couplers and adapters are available, contact Dixon for further information
  • Easy to handle-push and turn-free flow, turn and pull-closed
  • Time saving - no need to drain hoses or pipe systems
  • Economical, no loss or spillage of liquids at connection or disconnection
  • Safety- the valve cannot be opened until the unit is coupled
  • Safe and reliable- due to rugged construction
  • Product life - uncomplicated design and high-quality materials ensures long product life
  • Stainless steel ball bearings
  • All wetted parts are stainless steel
  • Rollers are Hastelloy C276 on the stainless steel shaft
  • FKM (FPM) seal
  • Compatible with Mann-Tek, Avery Hardoll and Todo-matic® and any other product produced according to NATO standard STANAG 3756

Applications: Dry disconnect couplings are designed for the quick and spill-free connection and disconnection of hoses and pipelines. They are used by producers of ink, adhesives, fatty acids, pharmaceuticals, liquid soaps, petroleum, chemicals, agricultural and a wide variety of common caustic and specialty acids

Safety Notes:

  • Working pressure is based on psi at ambient temperature 70 deg F, for pressure ratings at other temperatures contact Dixon®.
