Dixon® DDC400AL164TTMA DXN DDC400AL164TTMA | Tipco Technologies
Dixon® DDC400AL164TTMA
Send Print
  1. pin-int

Dixon® DDC400AL164TTMA

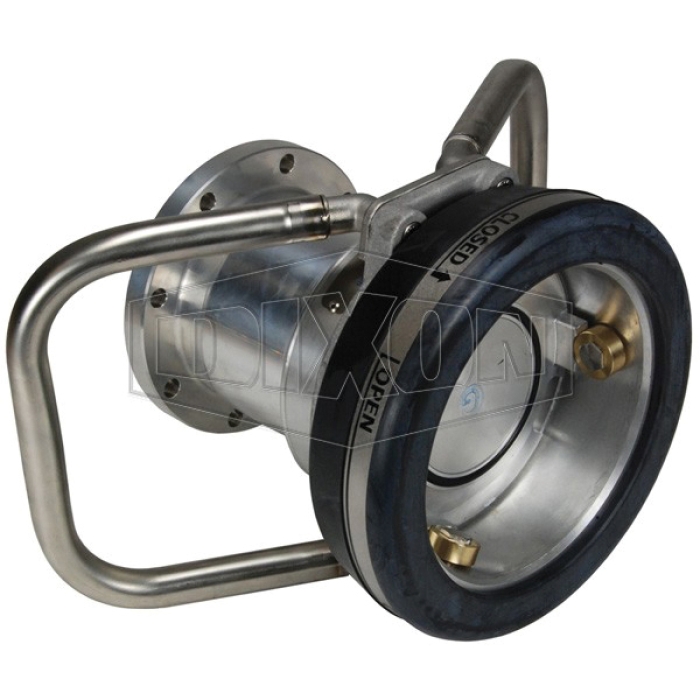

Dixon® DDC400AL164TTMA Aluminum Mann Tek Dry Disconnect Coupler, 164 mm Female Coupler x 4 in TTMA Flange

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN DDC400AL164TTMA
  • MPN: DDC400AL164TTMA
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Mann Tek Dry Disconnect Coupler, Connection Type 1: Fitting, Gender 1: Female, Connection Size 1: 164 mm, Connection Type 2: TTMA Flange, Connection Size 2: 4 in, 360 psi, Aluminum, Dimensions: 233 mm L

California residents see Prop 65 WARNINGS

Connection Size 1      :      164 mm
Connection Size 2      :      4 in
Pressure Rating      :      360 psi
Material      :      Aluminum
Dimensions      :      233 mm L
Fitting Type      :      Coupler
Connection 1      :      164 mm Fitting
Connection 2      :      4 in TTMA Flange
Connection Type 1      :      Fitting
Connection Type 2      :      TTMA Flange
Gender 1      :      Female
  • Coupler has built-in swivel
  • Shaft journal in stainless steel embedded in PTFE to eliminate seizure
  • The protective ring is a specially formulated, weather-resistant and electrically conductive rubber compound
  • Selectivity- to avoid product contamination, selective versions of the couplers and adapters are available, contact Dixon for further information
  • Easy to handle-push and turn-free flow, turn and pull-closed
  • Time saving - no need to drain hoses or pipe systems
  • Economical, no loss or spillage of liquids at connection or disconnection
  • Environmental friendly, accidental spillage eliminated when properly used
  • Safe and reliable- due to rugged construction
  • Product life - uncomplicated design and high-quality materials ensures long product life
  • Stainless steel ball bearings
  • All wetted parts are stainless steel, rollers are aluminum bronze on the stainless steel shaft
  • FKM (FPM) seal
  • Produced according to NATO standard STANAG 3756 and ATOFINA SGM 2049.TUY.C
  • Compatible with Mann-Tek, Avery Hardoll and Todo-matic® and any other product produced according to NATO standard STANAG 3756

Applications: Dry disconnect couplings are designed for the quick and spill-free connection and disconnection of hoses and pipelines. They are used by producers of ink, adhesives, fatty acids, pharmaceuticals, liquid soaps, petroleum, chemicals, agricultural and a wide variety of common caustic and specialty acids

Safety Notes:

  • Working pressure is based on psi at ambient temperature 70 deg F, for pressure ratings at other temperatures contact Dixon®.
  • video www.youtube.com/embed/t-D8boDN0jo
