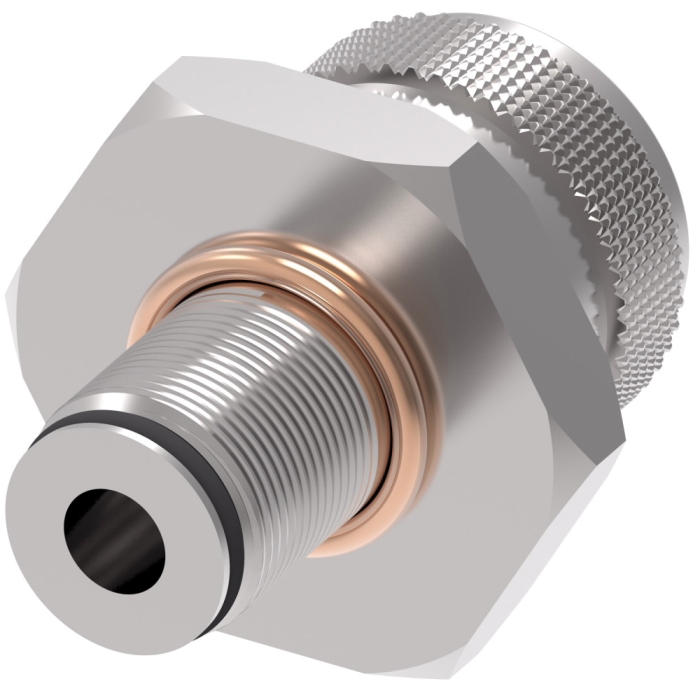

Aeroquip® FD14-4002-16-06

Aeroquip® FLOCS FD14 Carbon Steel Male Half Assembly, 3/8 in Quick Disconnect x 20 mm Metric

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FD14-4002-16-06
  • MPN: FD14-4002-16-06
  • UPC: 678146015785
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® FLOCS Male Half Assembly, Series: FD14, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: Metric, Connection Size 2: 20 mm, Thread Size 2: M20 x 1.5, Hex Size: 1-1/4 in, 50 psi, Carbon Steel, Dimensions: 1.54 in L x 1.4 in W x 1.4 in H

Connection Size 1      :      3/8 in
Connection Size 2      :      20 mm
Thread Size 2      :      M20 x 1.5
Hex Size      :      1-1/4 in
Pressure Rating      :      50 psi
Material      :      Carbon Steel
Dimensions      :      1.54 in L x 1.4 in W x 1.4 in H
Fitting Type      :      Half Assembly
Series      :      FD14
Connection 1      :      3/8 in Quick Disconnect
Connection 2      :      20 mm Metric
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      Metric
  • Saves time and labor costs
  • Minimizes messy spills
  • Able to change oil when it's hot
  • One-hand connect/disconnect
  • Full flow male half coupling can be used with gravity drain or pump system
  • Eliminates damaged or cross-threaded plugs
  • Includes gasket and cap

Applications: Automated oil evacuation systems and gravity drain oil evacuation systems

Warranty: 5 Years Limited
