Dixon® B8

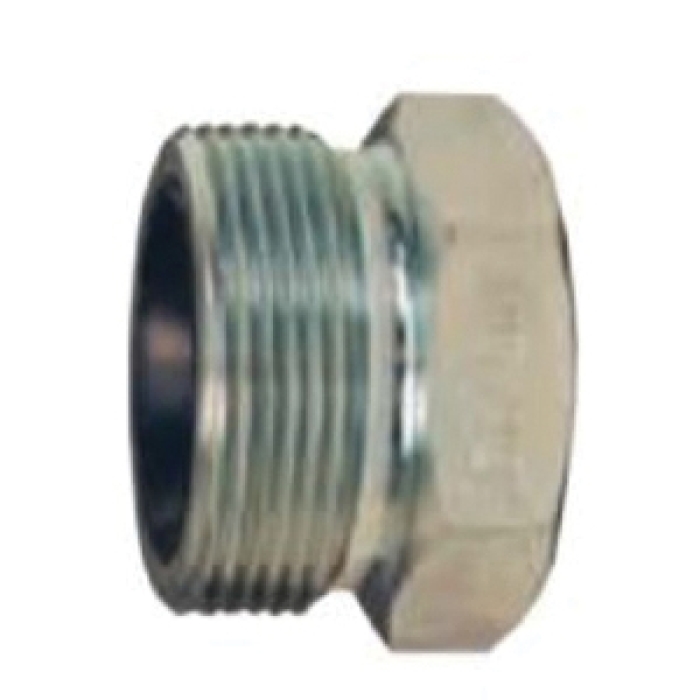

Dixon® Boss™ B8 Zinc-Plated Carbon Steel Washer Seal Spud, 3/4 in FNPT x 1-1/2 in NPSM

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN B8
  • MPN: B8
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Boss™ Washer Seal Spud, Connection Type 1: NPT, Gender 1: Female, Connection Size 1: 3/4 in, Thread Size 1: 3/4-14, Connection Type 2: NPSM, Connection Size 2: 1-1/2 in, Thread Size 2: 1-1/2-11, Hex Size: 1-7/8 in, Carbon Steel, Finish: Zinc-Plated, Dimensions: 1-3/8 in L, 450 deg F Steam Service, For Use With: Boss™ Washer Seal Fittings

California residents see Prop 65 WARNINGS

Connection Size 1      :      3/4 in
Connection Size 2      :      1-1/2 in
Thread Size 1      :      3/4-14
Thread Size 2      :      1-1/2-11
Hex Size      :      1-7/8 in
Material      :      Carbon Steel
Finish      :      Zinc-Plated
Dimensions      :      1-3/8 in L
Fitting Type      :      Spud
Temperature Rating      :      450 deg F Steam Service
For Use With      :      Boss™ Washer Seal Fittings
Connection 1      :      3/4 in NPT
Connection 2      :      1-1/2 in NPSM
Connection Type 1      :      NPT
Connection Type 2      :      NPSM
Gender 1      :      Female
  • The spud part of the coupling serves as one half of the connection and is usually fixed to the equipment
  • The stem part that is clamped to the hose is the other half
  • The two halves are connected or disconnected by rotating the wing nut on the spud
  • A leak-proof seal forms by rotating the wing nut and hammering it tight
  • Easy-to-seal
  • A Klingersil® C-4401 washer is inserted between the stem and spud
  • Recommended for steam service up to 450 deg F
  • Boss™ couplings supply a convenient threaded fitting to connect two lengths of hose or a single length to a male or female threaded outlet

Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

Applications: For steam hose connections, air, water, fluid petroleum, chemicals and liquid petroleum gas up to 1 in ID

Safety Notes: Worn-out hose couplings can be dangerous.

  • They should be checked regularly and replace when necessary.
  • Each coupling user should review applications and add safety devices where indicated.
  • Pressurized steam is an extremely dangerous commodity.
  • Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used!.
  • Never use an unapproved item for steam service.
  • Always follow the manufacturer's product recommendations for pressurized steam handling.
