Dixon® GM38

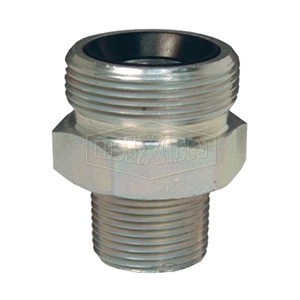

Dixon® Boss™ GM38 Plated Iron Ground Joint Spud, 3 in MNPT x 3 in MNPSM

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN GM38
  • MPN: GM38
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Boss™ Ground Joint Spud, Connection Type 1: NPT, Gender 1: Male, Connection Size 1: 3 in, Thread Size 1: 3-8, Connection Type 2: NPSM, Gender 2: Male, Connection Size 2: 3 in, Thread Size 2: 4-8, Hex Size: 4-7/8 in, Iron, For Use With: Boss™ Ground Joint Fittings

California residents see Prop 65 WARNINGS

Connection Size 1      :      3 in
Connection Size 2      :      3 in
Thread Size 1      :      3-8
Thread Size 2      :      4-8
Hex Size      :      4-7/8 in
Material      :      Iron
Fitting Type      :      Ground Joint Spud
For Use With      :      Boss™ Ground Joint Fittings
Connection 1      :      3 in NPT
Connection 2      :      3 in NPSM
Connection Type 1      :      NPT
Connection Type 2      :      NPSM
Gender 1      :      Male
Gender 2      :      Male
  • The spud part of the coupling serves as one half of the Boss ground joint connection and is usually fixed to the equipment
  • The stem part that is clamped to the hose is the other half, the two halves are connected or disconnected by rotating the wing nut on the spud, when connected they achieve both a mechanical, and a pressure seal
  • Positive metal-to-polymer seal
  • Leak-proof seal forms when the metal head of the stem makes contact with the patented polymer seat in the Boss™ ground joint spud
  • The non-metallic polymer seat resists most chemicals found in manufacturing facilities, reference the corrosion resistance chart for additional information
  • Easy-to-seal
  • Polymer seat
  • Recommended for steam service up to 450 deg F
  • Boss couplings supply a convenient threaded fitting to connect two lengths of hose or a single length to a male or female threaded outlet
