Dixon® HU200100 DXN HU200100 | Tipco Technologies
Dixon® HU200100
Send Print
  1. pin-int

Dixon® HU200100

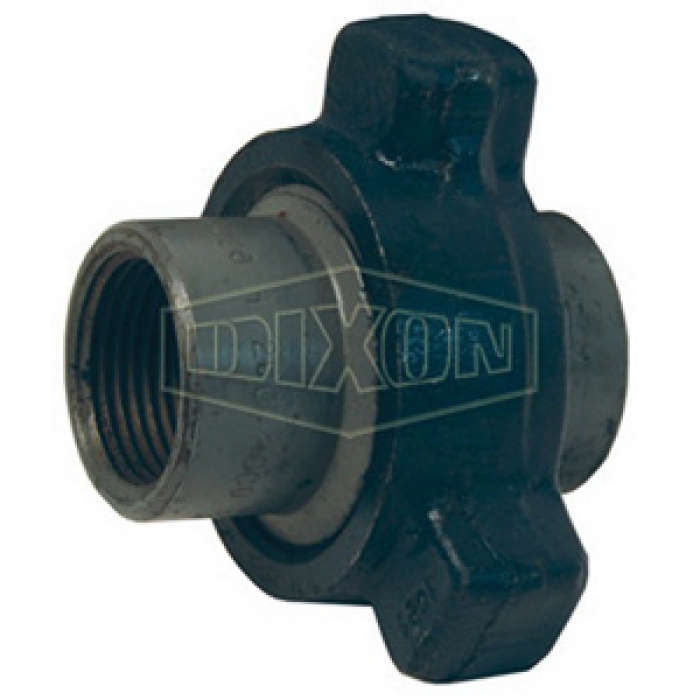

Dixon® 200 Forged Steel Hammer Union, 1 in FNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN HU200100
  • MPN: HU200100
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Hammer Union, 200 Series, Connection Type 1: NPT, Gender 1: Female, Connection Size 1: 1 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1 in, SCH 40, 2000 psi, Forged Steel, Dimensions: 4-1/32 in Dia x 2-7/16 in L, -20 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Hammer Union
Series      :      200
Connection 1      :      1 in NPT
Connection 2      :      1 in NPT
Connection Type 1      :      NPT
Connection Type 2      :      NPT
Gender 1      :      Female
Gender 2      :      Female
Connection Size 1      :      1 in
Connection Size 2      :      1 in
Pressure Rating      :      2000 psi
Material      :      Forged Steel
Dimensions      :      4-1/32 in Dia x 2-7/16 in L
Temperature Rating      :      -20 to 250 deg F
  • Grey sub, blue nut

Applications: For general service applications running air, water, oil or gas up to 2000 psi NSCWP (non-shock cold working pressure)
