Dixon® ATCF40-90

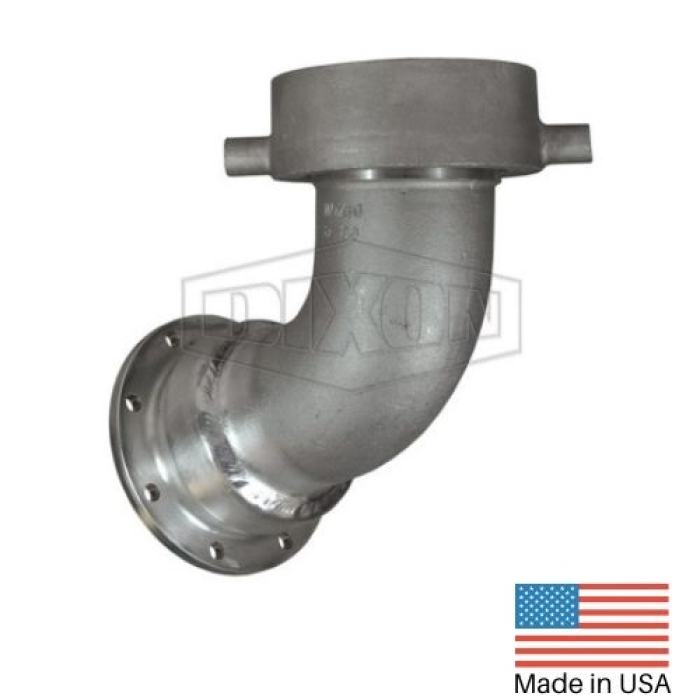

Dixon® ATCF40-90 Aluminum F Style 90 deg Elbow, 4 in TTMA Flange x 5 in Railroad Tank Car Threaded

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN ATCF40-90
  • MPN: ATCF40-90
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® F Style 90 deg Elbow, Connection Type 1: TTMA Flange, Connection Size 1: 4 in, Connection Type 2: Railroad Tank Car Threaded, Connection Size 2: 5 in, Aluminum

California residents see Prop 65 WARNINGS

Connection Size 1      :      4 in
Connection Size 2      :      5 in
Material      :      Aluminum
Fitting Type      :      90 deg Elbow
Connection 1      :      4 in TTMA Flange
Connection 2      :      5 in Railroad Tank Car Threaded
Connection Type 1      :      TTMA Flange
Connection Type 2      :      Railroad Tank Car Threaded
  • Swivel nut has standard 5 in railroad tank car thread
  • TTMA flange can be bolted to a sight glass or API adapter or other dry disconnect
  • PTFE Buna-N envelope gasket in the the threaded end
  • Produced as a welded fabrication

Applications: Designed for transloading bio and other fuels

Safety Notes:

  • Stainless steel railroad tank car connections are not compatible with aluminum and brass.
