Dixon® DGC100SS
Send Print
  1. pin-int

Dixon® DGC100SS

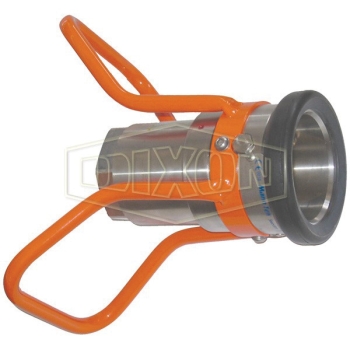

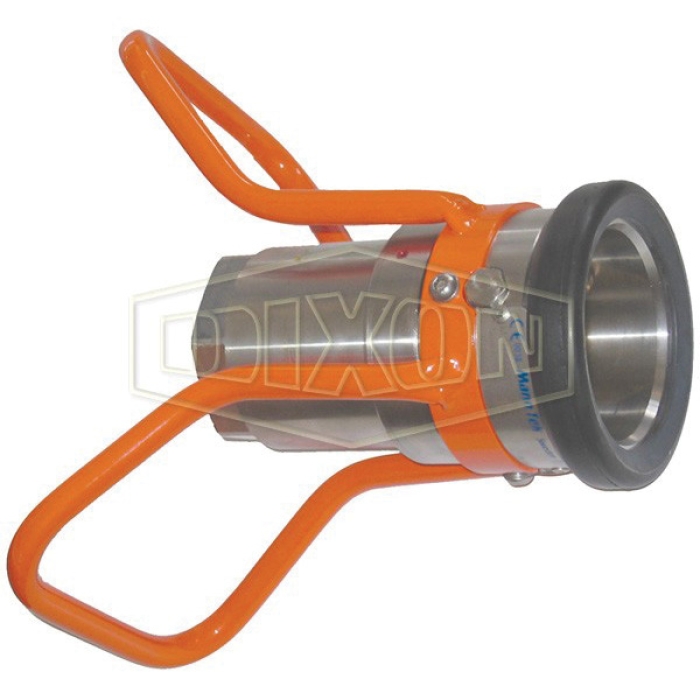

Dixon® DGC100SS 316 Stainless Steel Mann Tek Dry Gas Hose Unit Coupler, 56 mm Female Coupler x 1 in FNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN DGC100SS
  • MPN: DGC100SS
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Mann Tek Dry Gas Hose Unit Coupler, Connection Type 1: Fitting, Gender 1: Female, Connection Size 1: 56 mm, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1 in, 360 psi, 316 Stainless Steel

California residents see Prop 65 WARNINGS

Connection Size 1      :      56 mm
Connection Size 2      :      1 in
Pressure Rating      :      360 psi
Material      :      316 Stainless Steel
Fitting Type      :      Coupler
Connection 1      :      56 mm Fitting
Connection 2      :      1 in NPT
Connection Type 1      :      Fitting
Connection Type 2      :      NPT
Gender 1      :      Female
Gender 2      :      Female
  • Quick and easy to connect and can be connected to a tank unit with pressures up to 225 psi
  • For higher pressure, couplings can easily be equipped with a pressure relief valve that dissipates trapped fluid pressure into the hose coupler without spillage
  • Reliable, easy-to-use, easy to maintain and saves time
  • Minimizes the risk of cold burns, spillage and product loss and health risks
  • Compatible with existing dry disconnect couplings
  • Stainless steel and brass/gunmetal
  • Gunmetal is produced to US government bronze specification G
  • FKM (FPM) seal

Applications: Dry gas couplings are designed for safe loading and discharge of bobtails or intermediate bulk delivery trucks and transfer to and from railcars. The primary application is in the handling of LPG - propane and butane

Safety Notes:

  • Working pressure is based on psi at ambient temperature 70 deg F, for pressure ratings at other temperatures contact Dixon®.
